Slimline Double Glazed Partitioning System

DG54

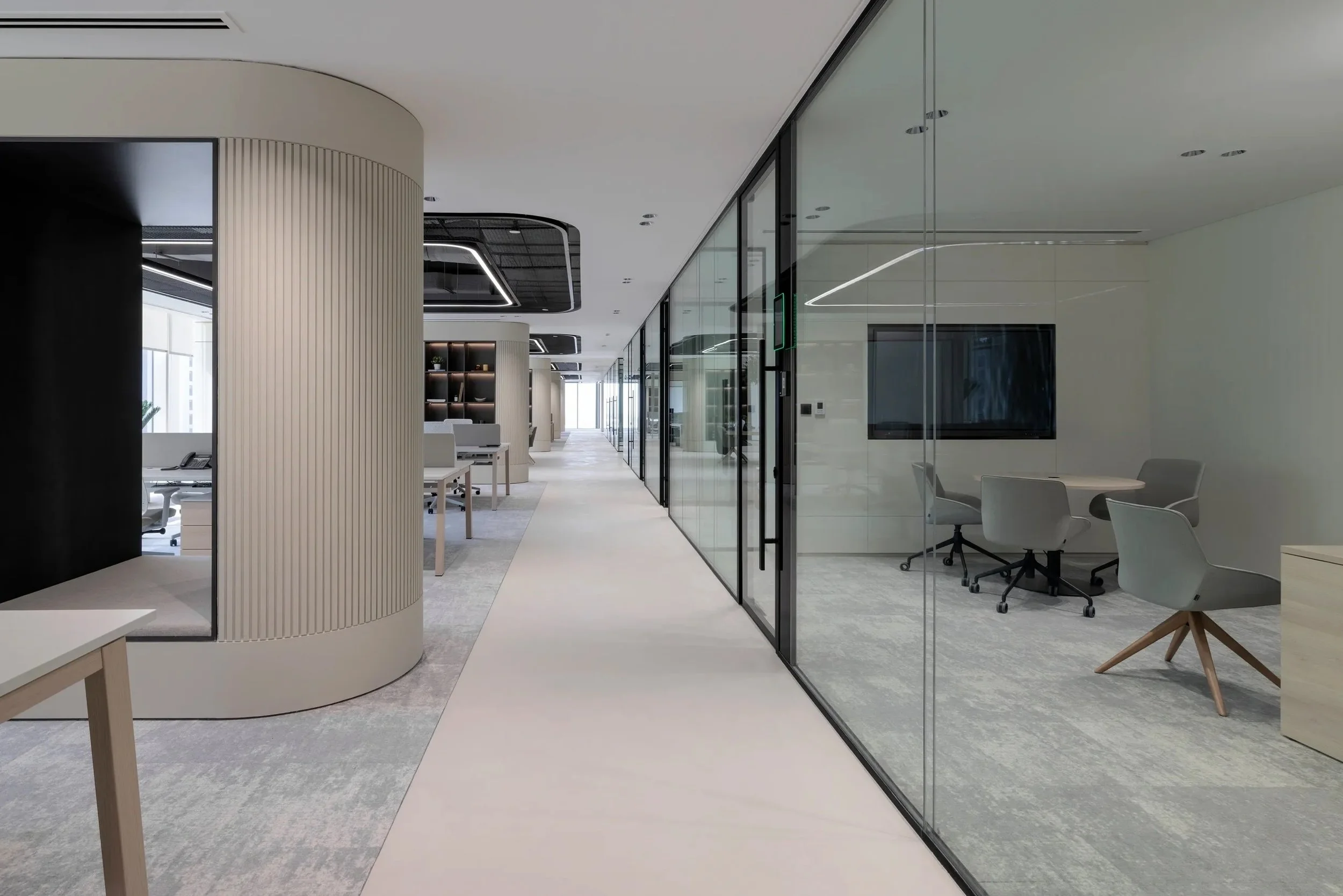

Modern office interior with glass partitions, workspaces, and minimalist design elements.

The DG54 double-glazed partitioning system offers a sleek, lightweight solution for architects seeking refined aesthetics without compromising acoustic performance. With a slimmer profile and acoustic reduction of up to 42dB, the DG54 system is ideal for modern office spaces, meeting rooms, and collaborative environments. Designed for flexibility and ease of installation, it supports demountable configurations while maintaining structural integrity with a line load resistance of 0.74kN. Precision Framing System – Incorporates 2-part base channels, deflection heads, and high-quality door frames for a robust yet adaptable build.

Acoustic Options Available

Speaker icon with sound waves indicating audio or volume
SG25 Specification

Download
SG25 Specification

Corporate brochure cover for Glass Interiors featuring a geometric mosaic of blue, green, and white triangles and rectangles, with the company logo and the text "Glass Interiors: Innovative Glazing Systems" and "Corporate Brochure 2019/2020."

Download
Corporate Brochure

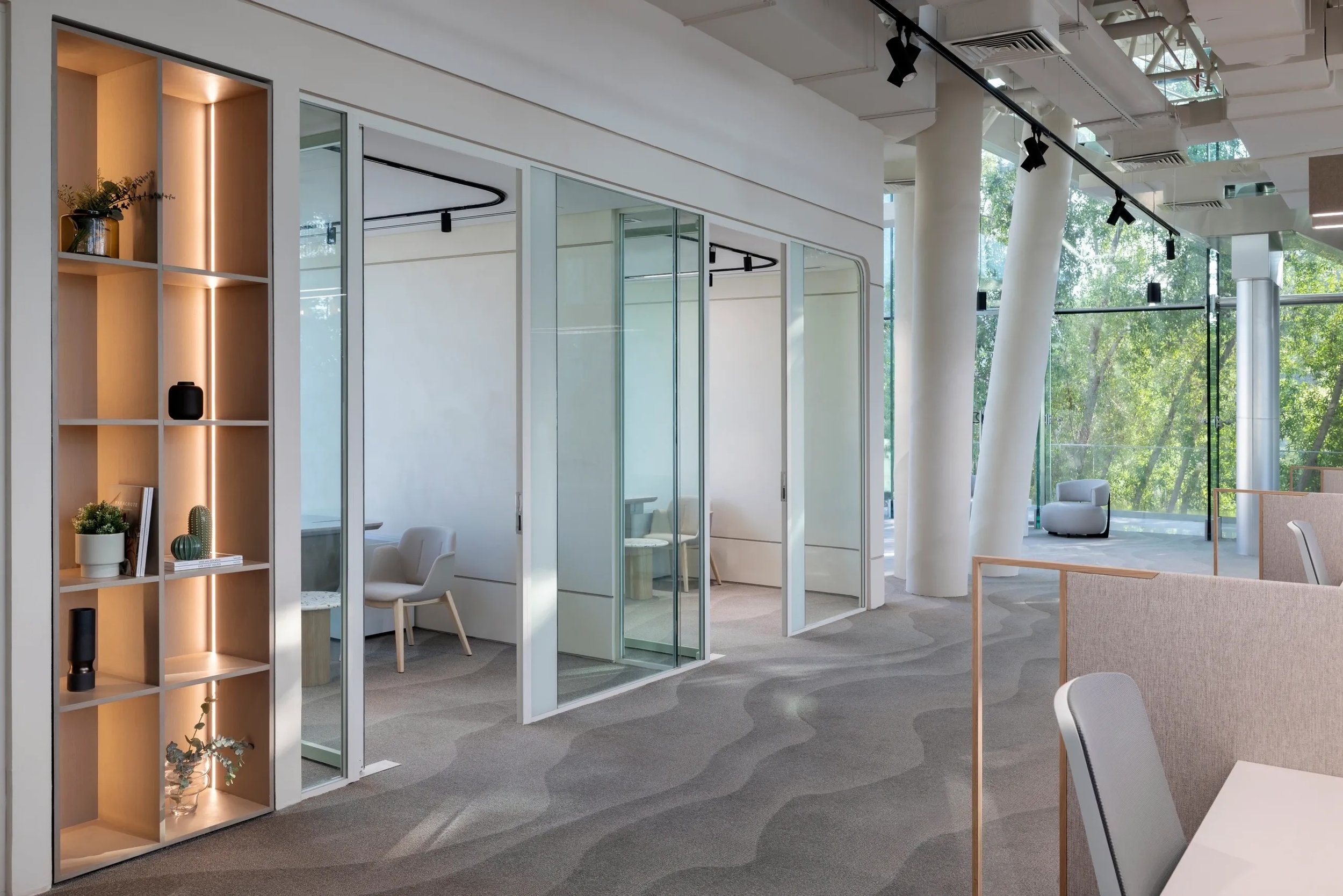

Modern office interior with glass partition walls, a tall wooden shelf with decorative items, chairs, and large windows showing green trees outside.

DG54

Specification Overview

Max Dimensions
Width - Continuous
Height up to 3000mm

Fire Rating
N/A

Acoustic reduction
12.8mm Acoustic Glass - 42dB
10mm Toughened Glass - 38dB

Loadings
Up to 0.74kN

Deflection Head
±25mm

Door Types
D30 Frameless
D40 Acoustic
TD40 Timber Solid Core

Door Frame Options
Rebated Aluminium
Frameless (Glass-to-glass)

Compatible Glass Types
10mm Toughened
10.8mm Acoustic Glass
12mm Toughened
12.8mm Acoustic Glass
13.5 Toughened / Laminated

Cross-sectional diagram of two transparent tubes inside a black housing with measurements of 25mm and 54mm.
Diagram of two blue and gray electronic components with measurements of 54mm width and 25mm height.
A technical drawing of a dual electrical or mechanical component with dimensions 54mm wide and 85mm tall, featuring blue elements inside a gray frame.
Cross-section of an industrial aluminum extrusion die with multiple cavities and channels.

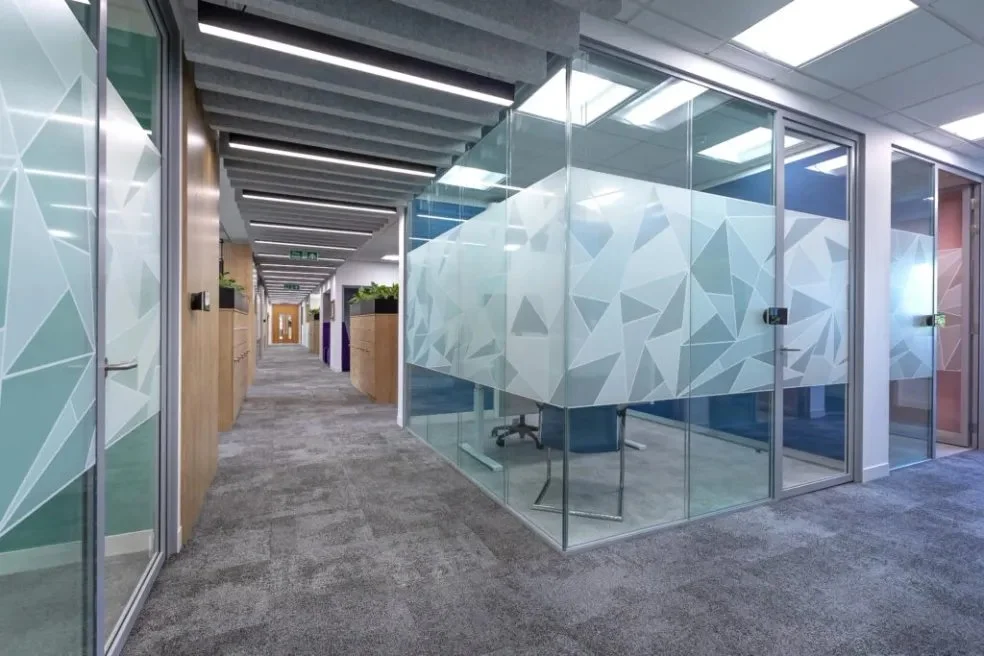

Modern office corridor with glass-walled meeting rooms, gray carpet, and ceiling with linear lighting.

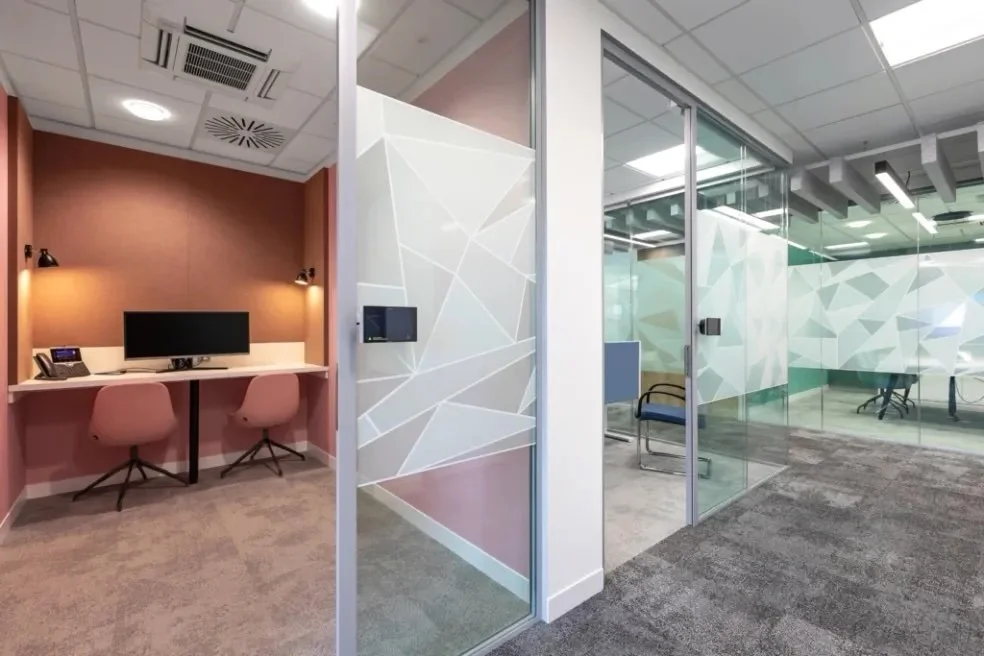

Two office rooms separated by glass walls in a modern office space. The room on the left has a pink wall, a desk with a computer monitor, a phone, and two pink chairs. The room on the right has glass walls with geometric patterns, chairs, and a confe

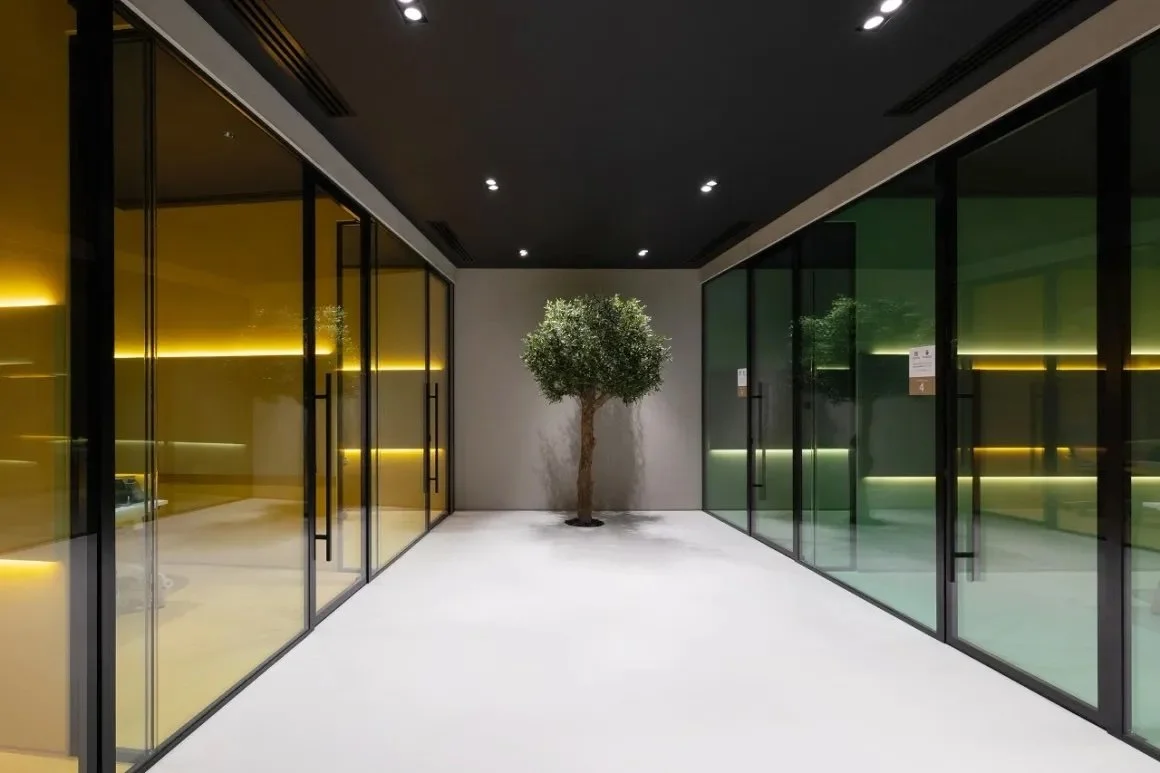

A minimalist indoor corridor with a potted tree in the center, glass walls with black frames on both sides, and a gray ceiling with recessed lighting.

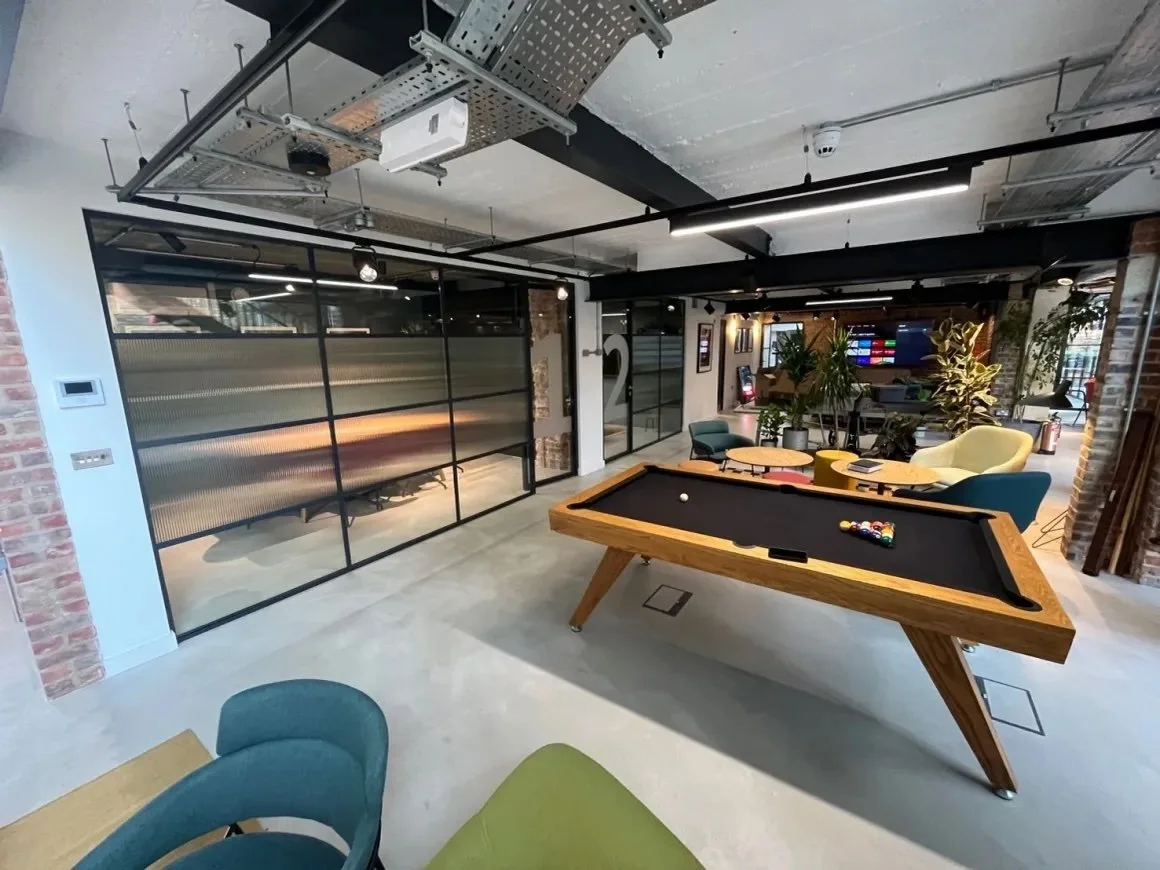

Modern lounge with a pool table, seating area, plants, and a glass wall dividing rooms.

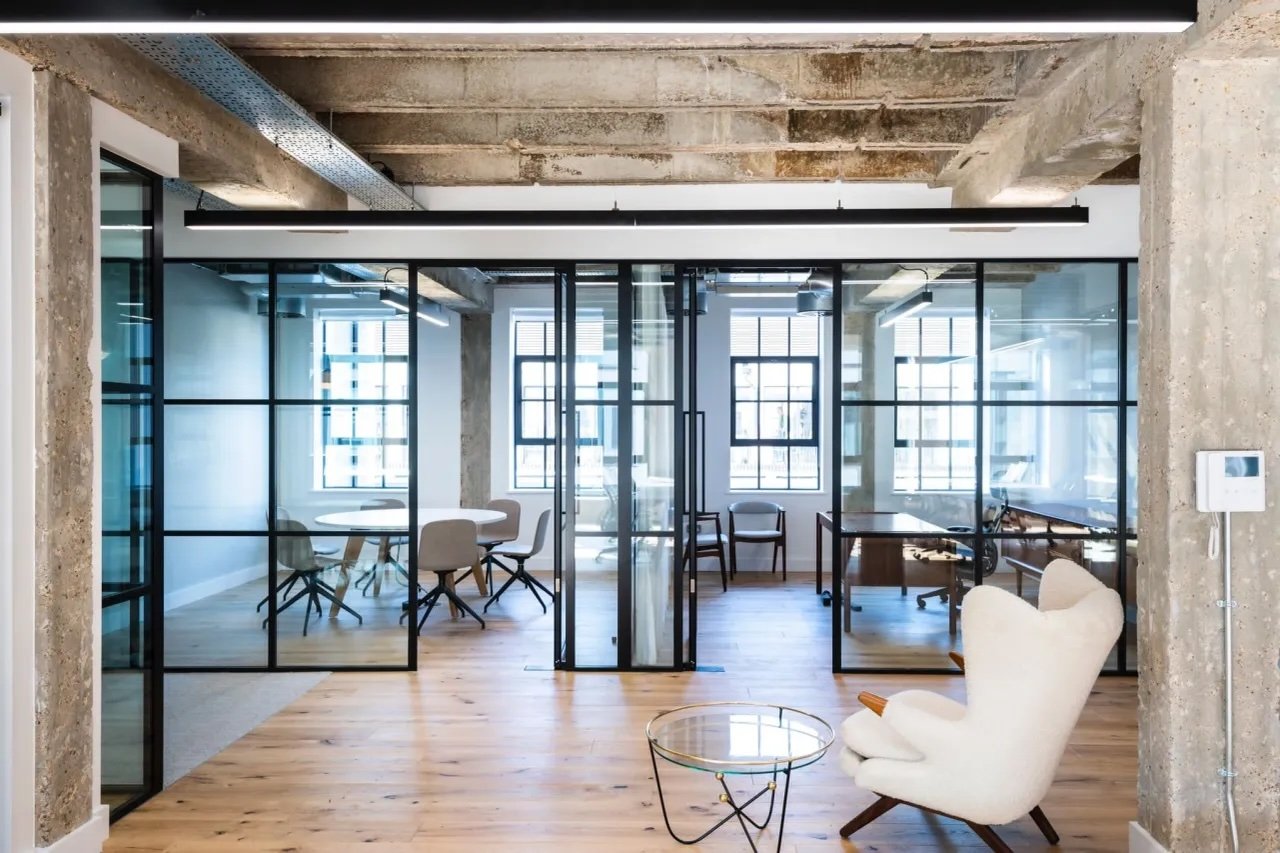

Modern office space with glass partitions, wooden floors, and furniture including a white armchair, round table, and desks. Large windows allow natural light in, and industrial-style exposed concrete beams are on the ceiling.

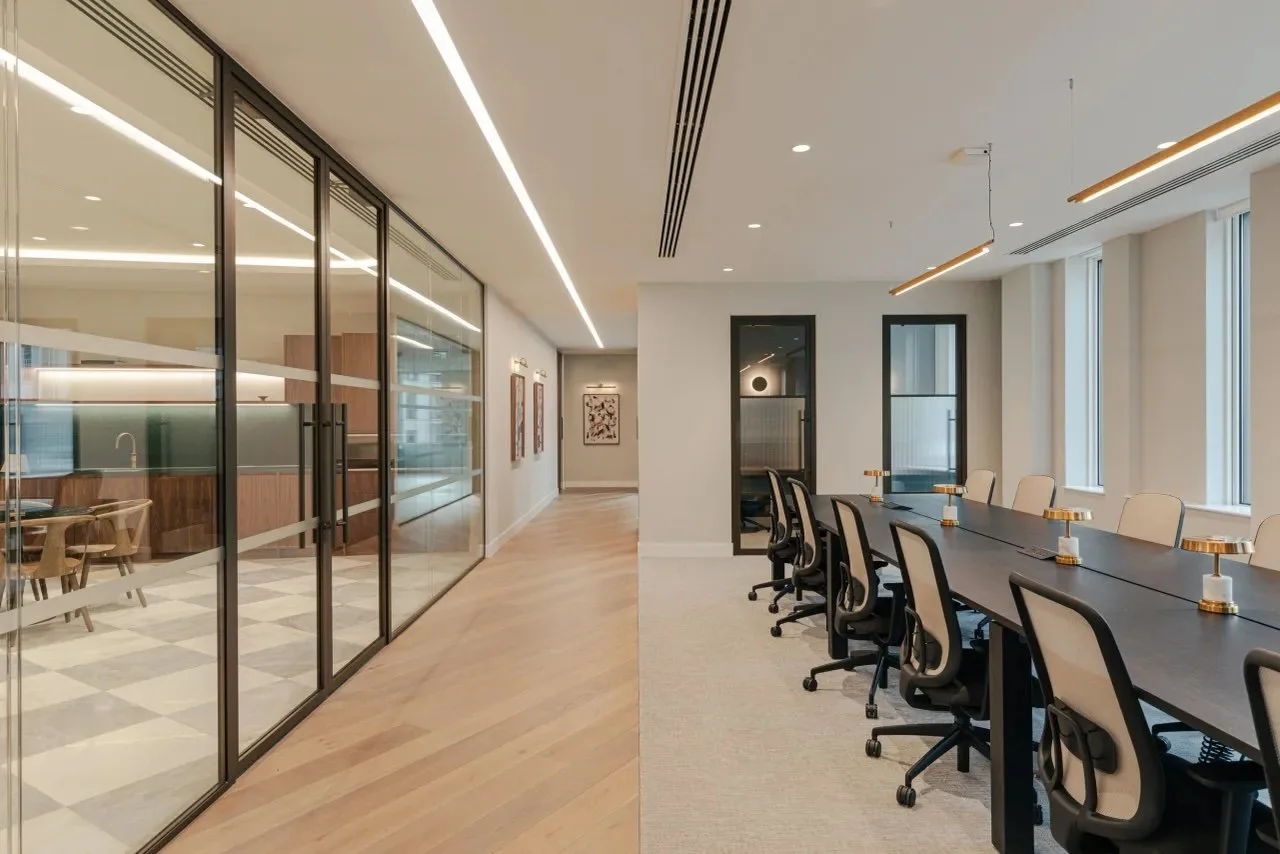

Modern conference room with a long black table, cream chairs, and large windows on the right. On the left, a glass wall separates it from another room with wooden chairs and a table. Light wood flooring and minimalistic decor.
