High Performance Single Glazed Ei Fire Rated up to 60 Minutes

TSG50

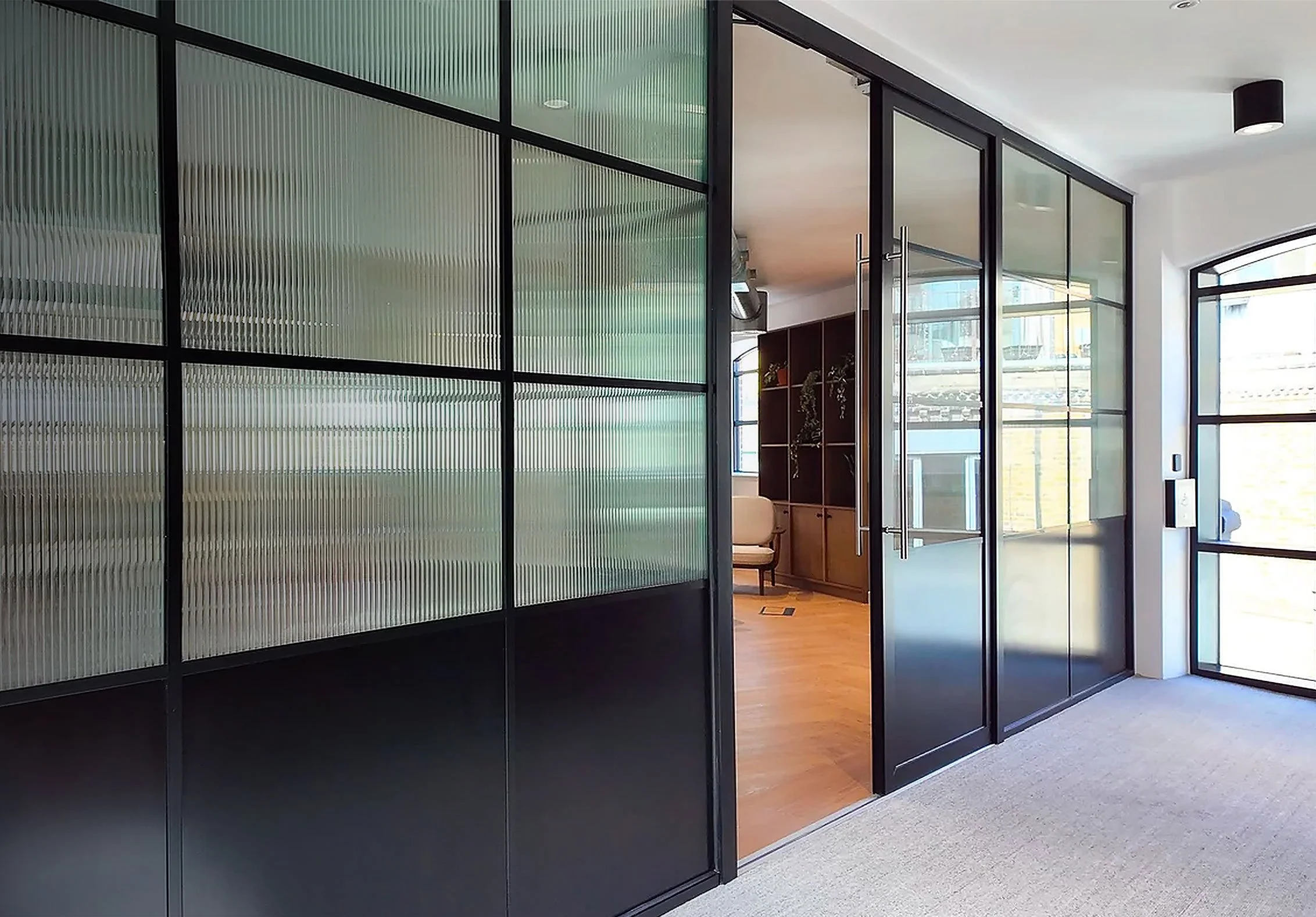

Modern interior with black-framed glass partition walls, wooden flooring, white walls, and a large window letting in natural light.

The TSG50 is a high-performance fire-rated glass partitioning system, designed to provide EI30 and EI60 fire resistance while maintaining a sleek, frameless aesthetic. Utilizing Schott Pyranova 15mm and 23mm fire-rated glass, the system features butt-jointed glazing with advanced fire-rated dry joint technology, eliminating the need for silicone or unsightly framing elements. Engineered for architectural flexibility

The TSG50 system achieves up to 43dB acoustic reduction and supports installations up to 3000mm in height, making it ideal for modern office, commercial, and public-sector applications. Full-Height Door Integration – Compatible with single and double full-height fire-rated door sets, ensuring design continuity.

Fire Options Available

Acoustic Options Available

Speaker icon with sound waves indicating audio or volume

Download
SG25 Specification

Cover of a corporate brochure for Glass Interiors, featuring a geometric design with blue, green, and white triangles and rectangles, and images of glass interior designs.

Download
Corporate Brochure

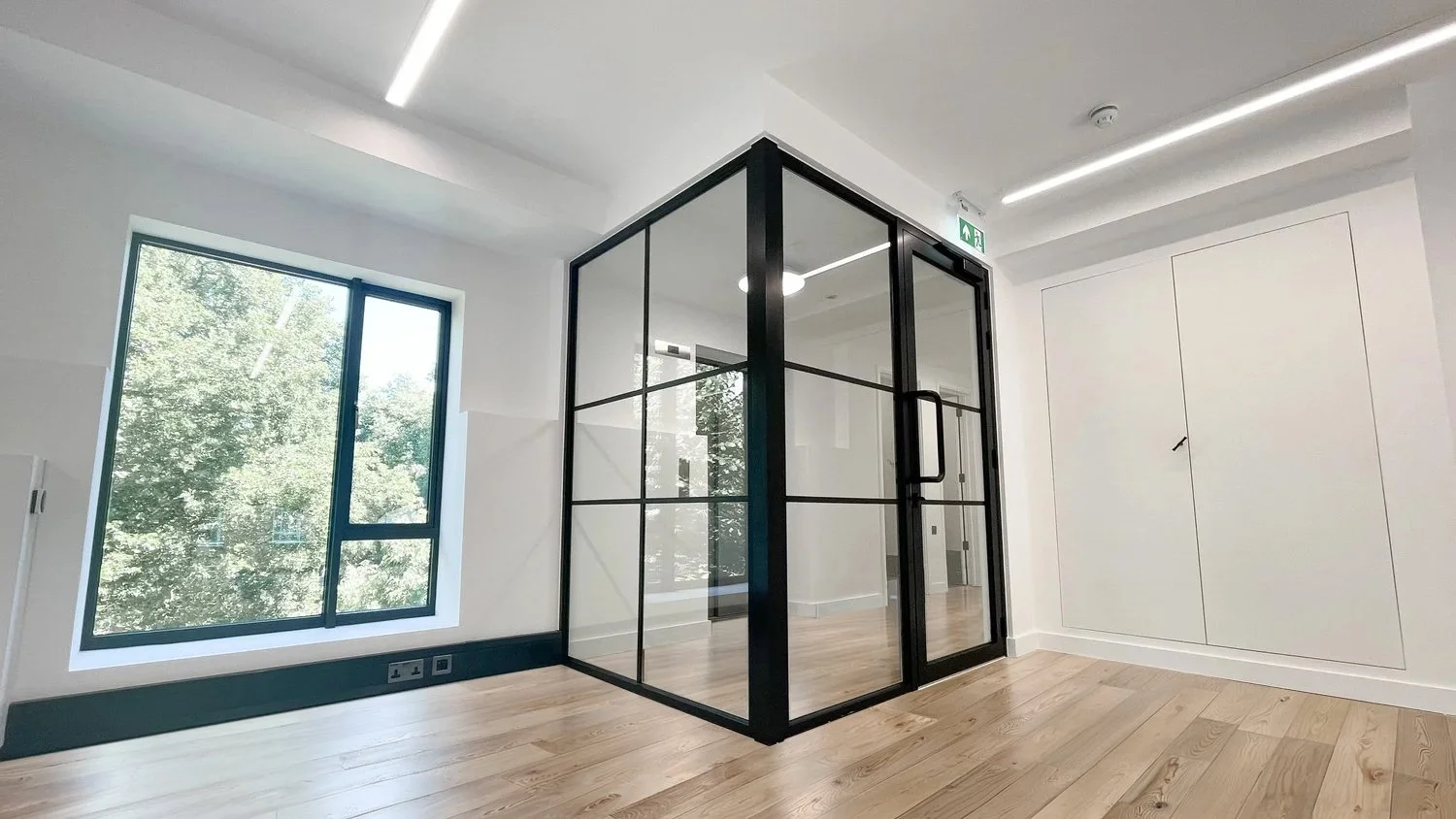

Modern interior room with large windows, wooden floor, and a glass cube structure with black metal frame.

TSG50

Specification Overview

Max Dimensions
Width - Continuous
Height up to 3000mm

Fire Rating
Ei30 (Integrity & Insulation)
Ei60 (Integrity & Insulation)

Acoustic reduction
23mm Fire Glass - 43dB
16.8mm Acoustic Glass - 42dB
12mm Toughened Glass - 35dB

Loadings
Up to 1.5kN

Deflection Head
±25mm

Door Types
D46 Acoustic
D54 Fire Ei Rated
TD40 Timber Solid Core

Door Frame Options
Rebated Aluminium
Frameless (Glass-to-glass)

Compatible Glass Types
12mm Toughened
12.8mm Acoustic Glass
16.8mm Acoustic Glass
13.5 Toughened / Laminated
21.5 Toughened / Laminated
23mm Pyranova Ei60 Fire Rated
15mm Pyranova Ei30 Fire Rated

A cross-sectional diagram of a mechanical tool or device, including labeled parts and measurements, with blue, gray, and black colors.

Technical drawing of a metal frame with measurements and a blue and white component in the center.

Diagram of a water cooling system showing water flow through pipes, reservoir, pump, and heat exchanger.
