Banded LOFT Style Glazing, Single & Double Glazed

LOFT Glazed

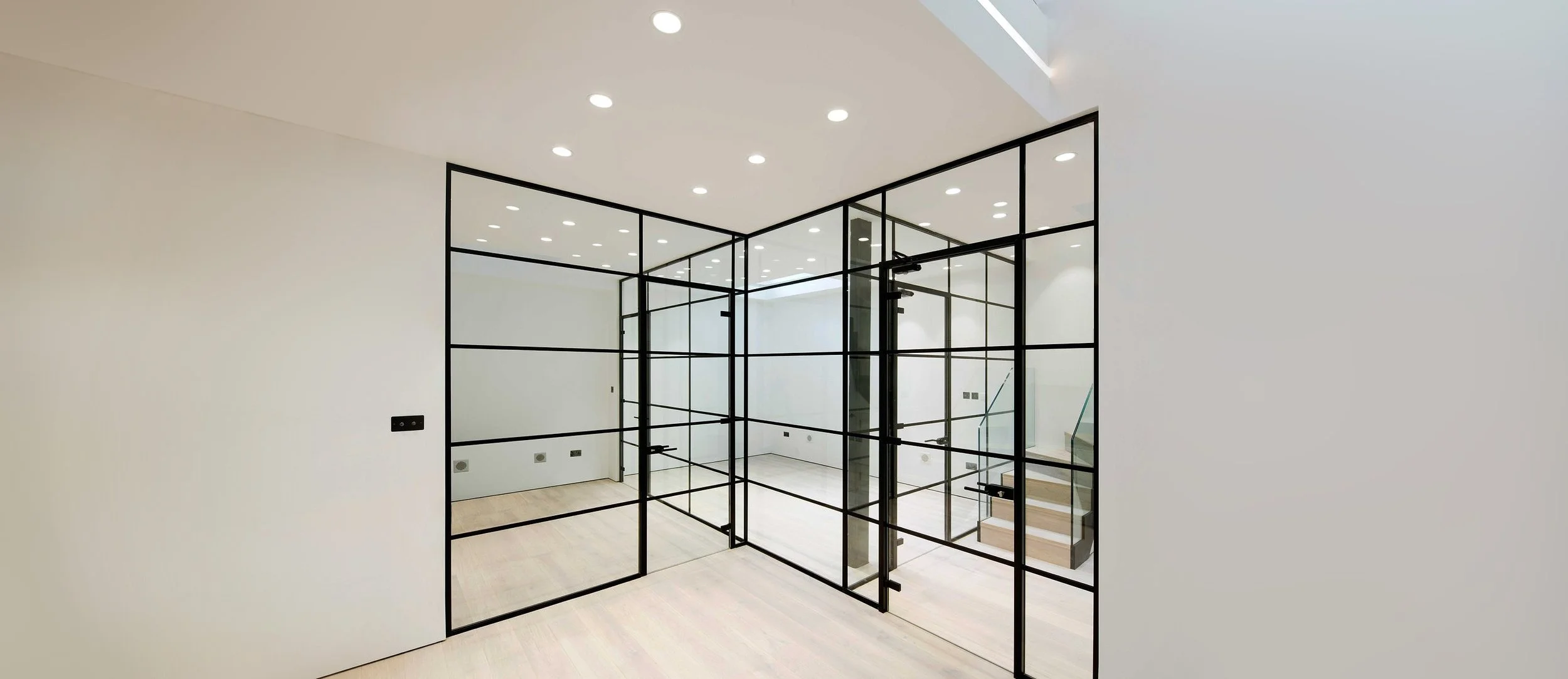

Modern interior with white walls, a black metal-framed glass partition, and recessed ceiling lights.

LOFT Glazed system is available in both single and double glazed configurations and can be installed to heights of up to 3000mm using a range of glass types. Completely customisable, It offers clients a highly flexible product. The slim frame offers a nearly flush glazed solution creating exceptional aesthetics. High acoustic performance options are available, achieving up to 51dB, along with fire performance (E & Ei) for schemes with fire compartmentation requirements. For those seeking a more industrial aesthetic, LOFT Style banding can be incorporated into the glazing, replicating the look of traditional steel windows within a modern demountable system. Frame finishes are supplied in a range of standard RAL painted finishes. A range of doors can be incorporated from fully frameless single glazed products to framed doors for better acoustics and timber solid core doors.

Green flame icon

Fire Options Available

Speaker icon with sound waves.

Acoustic Options Available

SG25 Specification

Download
SG25 Specification

Cover of a corporate brochure for Glass Interiors, featuring a geometric pattern of blue, green, and white triangles and squares, with the company logo and title 'Glass Interiors Innovative Glazing Systems, Corporate Brochure 2019/2020'.

Download
Corporate Brochure

Modern office space with glass partitions, a wooden conference table surrounded by yellow chairs, and potted plants near large windows with white blinds.

LOFT Glazed

Specification Overview

Max Dimensions
Width - Continuous
Height up to 3000mm

Fire Rating
Non-fire rated
E30 / E60 Integrity Only
Ei30 / Ei60 Integrity Only

Acoustic reduction
12.8mm Acoustic Glass - 51dB
10mm Toughened Glass - 33dB

Loadings
Up to 0.74kN

Deflection Head
±25mm

Door Types
D30 Frameless
D40 Acoustic
SD30 Sliding
TD40 Timber Solid Core

Door Frame Options
Rebated Aluminium
Frameless (Glass-to-glass)

Compatible Glass Types
10mm Toughened
10.8mm Acoustic Glass
12mm Toughened
12.8mm Acoustic Glass
13.5 Toughened / Laminated

Cross-sectional diagram of a mechanical or structural component with dimensions, showing a blue central element within a gray outer structure, labeled with measurements of 24mm and 26mm.
Cross-section of an aluminum profile with measurements, showing a hollow rectangular shape with internal grooves and a blue element inside.
Cross-sectional diagram of a mechanical assembly showing two parallel blue cylindrical components connected by a central gray structure with internal mechanisms and a red element at the bottom.
Cross-sectional diagram of an aluminum rail with blue sliding component inside.
An office corridor with glass-walled conference rooms and seating area, decorated with plants and illuminated by ceiling lights.
Modern office space with glass partitions, exposed concrete ceiling beams, wood flooring, and seating areas.
Modern interior space with a wooden floor, a glass partition with black metal framing, a dresser with a lamp and decorative branch, and shelves with vases and figurines.
A modern lounge area with green, yellow, and brown chairs around a dark wooden coffee table, with a tan and white brick wall and large windows letting in natural light, in front of a glass-walled conference room with people working inside.
Modern conference room with a long table, eight chairs, a large television mounted on a wood-paneled wall, and glass partitions in the background.
Modern office conference room with large glass walls and red chairs.
