High Performance Single Glazed Partitioning System

SG30

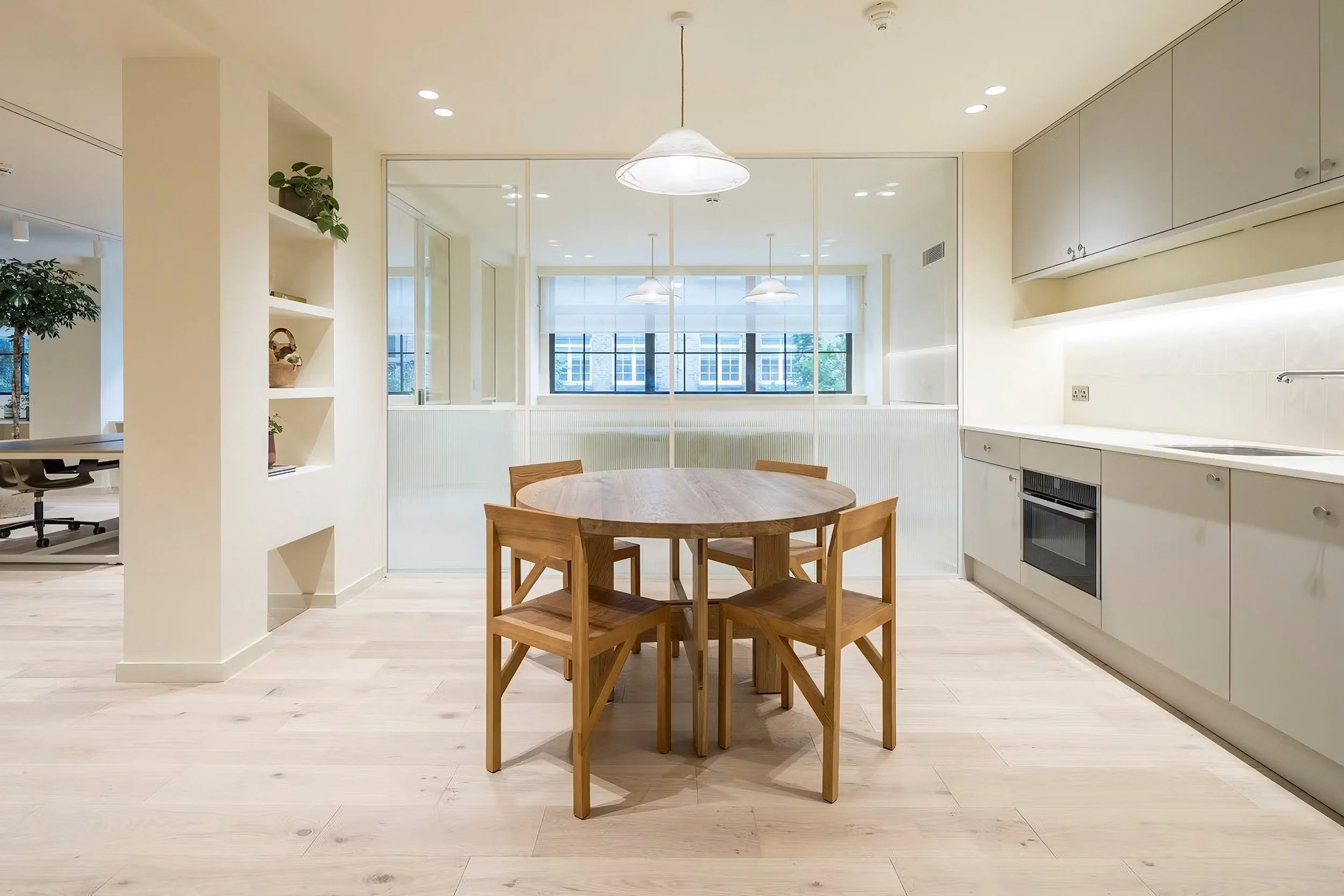

Minimalist kitchen and dining area with round wooden table and four chairs, white cabinetry, large windows with blinds, and pendant lighting fixtures.

The SG30 builds on our proven SG25 platform, adding a step up in acoustic performance and E rated fire integrity for demanding commercial spaces. Fully demountable and re-locatable, the SG30 is a single glazed system installed to heights of up to 3200mm using 10mm to 13.5mm toughened laminated glass. Its slim, nearly flush frame offers the same quick installation and flexibility as SG25, with exceptional aesthetics for the workplace. New to the SG30: doors and screens achieving up to 41dB acoustic performance, plus E rated fire performance (integrity only) for schemes with fire compartmentation requirements. Frame finishes are available in standard RAL paint or anodised. Doors range from fully frameless single glazed to framed (for enhanced acoustics) and timber solid core options.

Fire Options Available

Green flame icon on a black background.
Green square on a white background.

Acoustic Options Available

SG25 Specification

Download
SG25 Specification

Corporate brochure cover for Glass Interiors, showcasing colorful geometric glass designs, with the title 'Glass Interiors Innovative Glazing Systems' and the subtitle 'Corporate Brochure 2019 / 2020'.

Download
Corporate Brochure

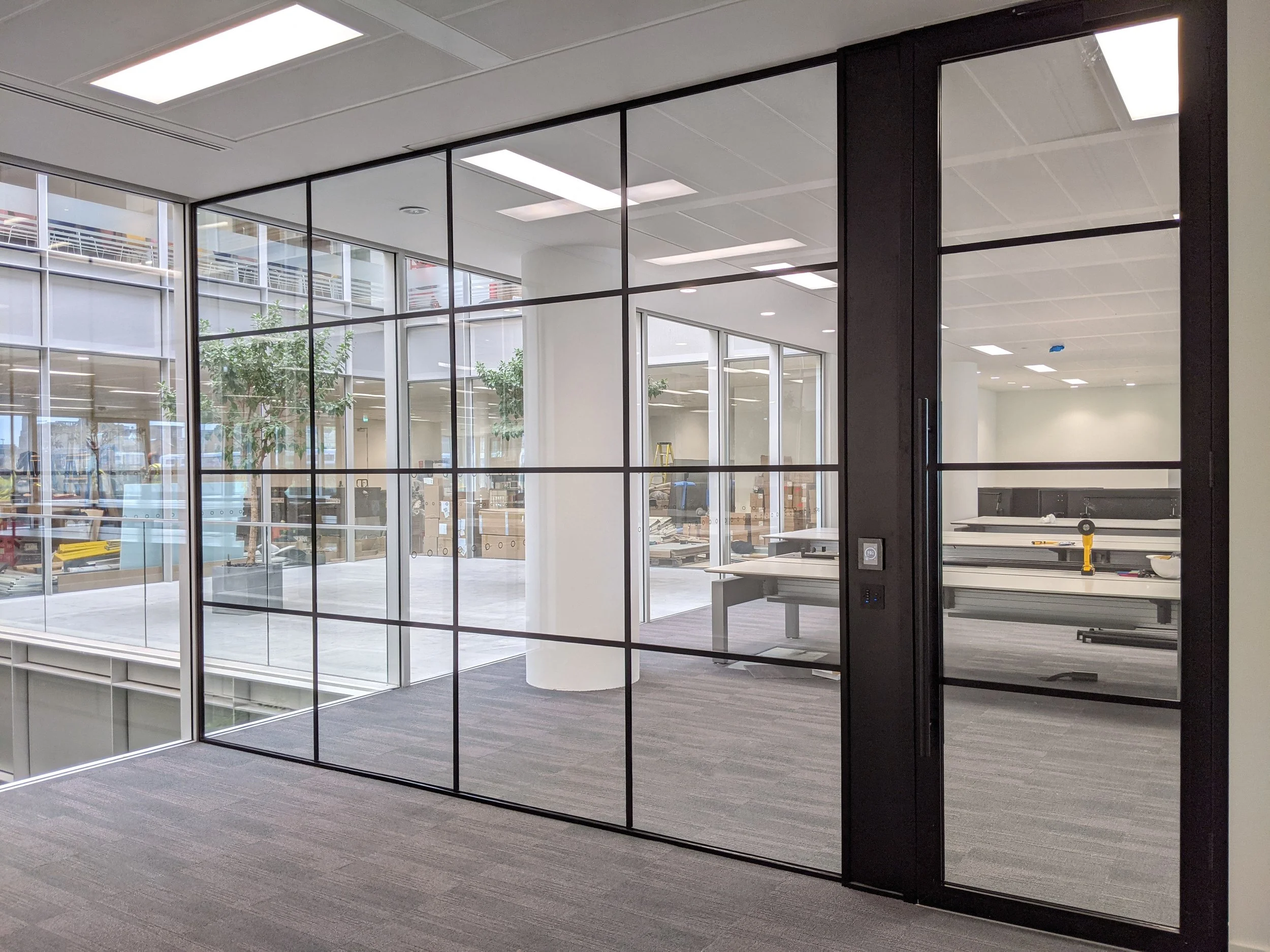

Interior view of an office space with glass walls, visible desks, and ceiling lights.

SG30

Specification Overview

Max Dimensions
Width - Continuous
Height up to 3400mm

Fire Rating
E30 (Integrity Only)
E60 (Integrity Only)

Acoustic reduction
16.8mm Acoustic Glass - 41dB
12.8mm Acoustic Glass - 38dB
10mm Toughened Glass - 33dB

Loadings
Up to 0.74kN

Deflection Head
±25mm

Door Types
D30 Frameless
D40 Acoustic
D46 Fire E Rated
DC30 Fire E Rated
SD30 Sliding
TD40 Timber Solid Core

Door Frame Options
Rebated Hardwood Timber
Rebated Aluminium
Frameless (Glass-to-glass)

Compatible Glass Types
10mm Toughened
10.8mm Acoustic Glass
12mm Toughened
12.8mm Acoustic Glass
16.8mm Acoustic Glass
13.5 Toughened / Laminated
15.5 Toughened / Laminated
11mm Pyranova E30 Fire Rated
15mm Pyranova E60 Fire Rated

Cross-sectional diagram of an LED with measurements of 30mm by 30mm, showing internal components and structure.
Cross-sectional diagram of an aluminum extrusion profile measuring 30mm by 30mm with a slot and a blue object inserted into the slot.
Diagram of a cross-section of a car battery terminal with a blue and silver connector.
Cross-sectional diagram of a window frame with insulating glass.

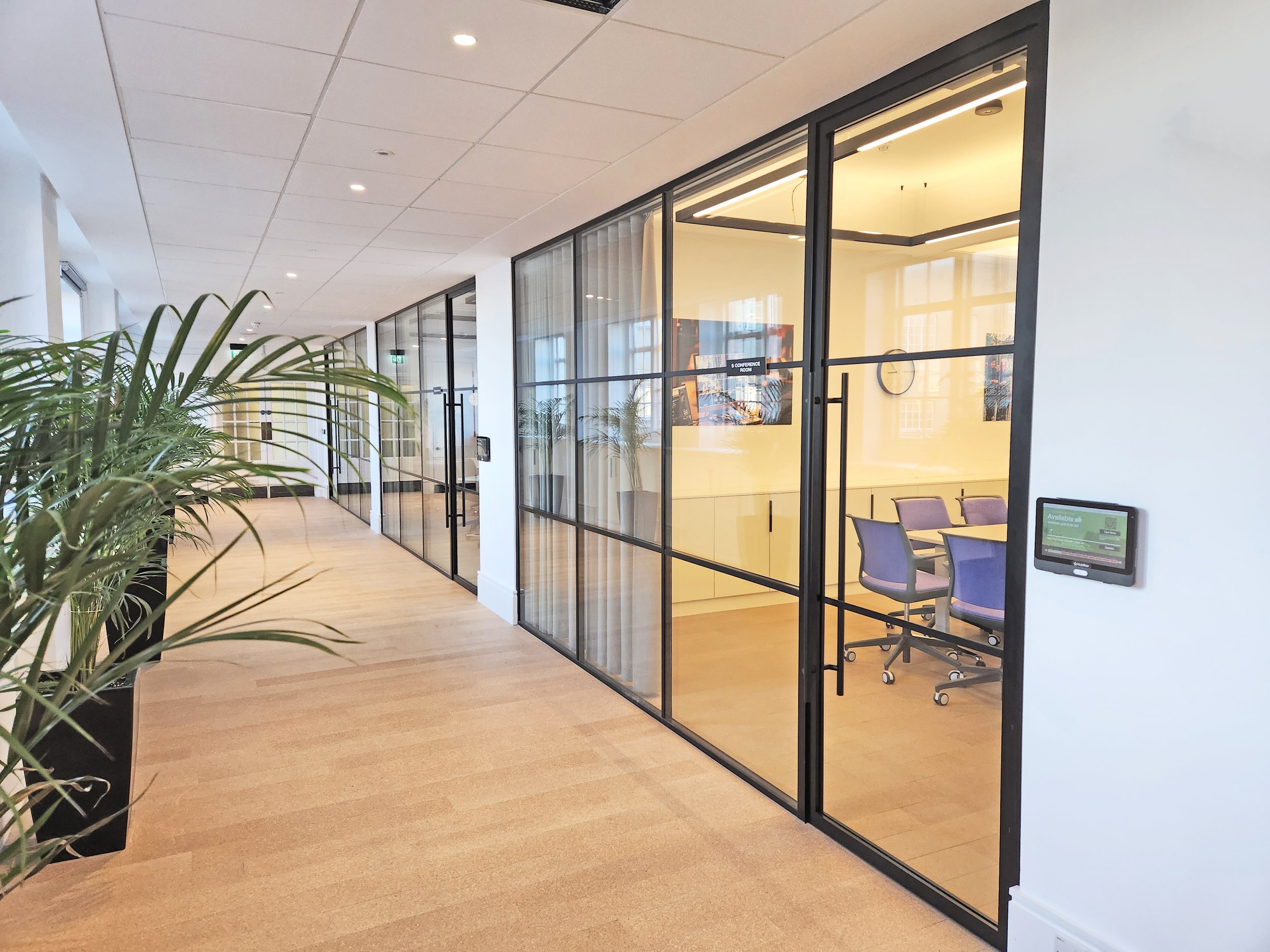

Office interior with conference rooms, glass walls, and plants along a hallway with beige carpet and white ceiling.

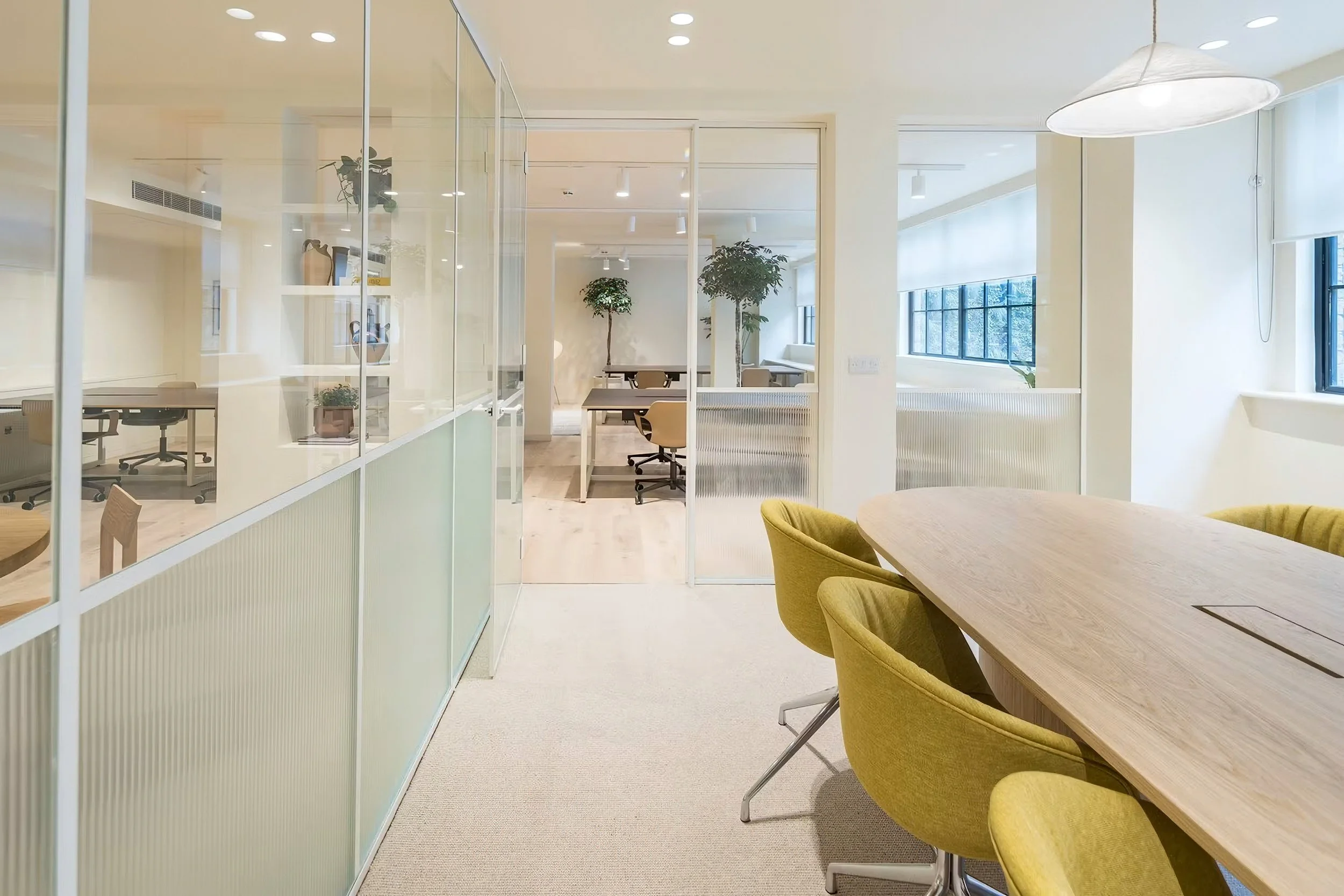

Office space with glass partitions, wooden tables, yellow chairs, potted plants, large windows with blinds, and a ceiling pendant light.

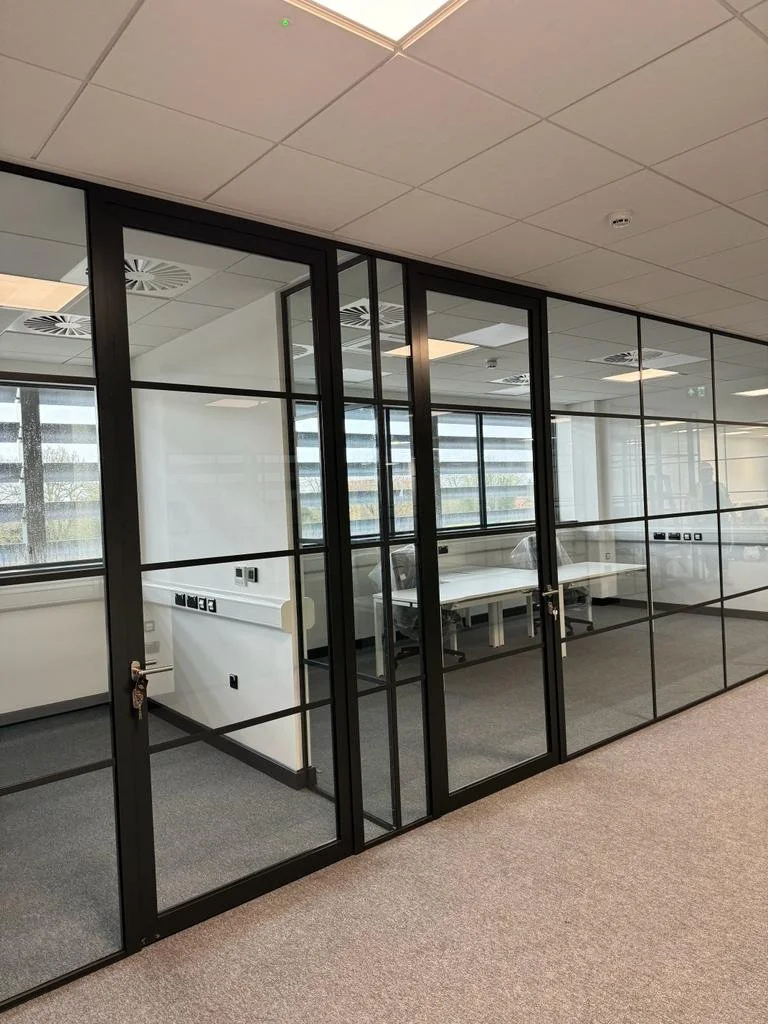

Modern office conference room with glass walls, white tables, black chairs, and large windows

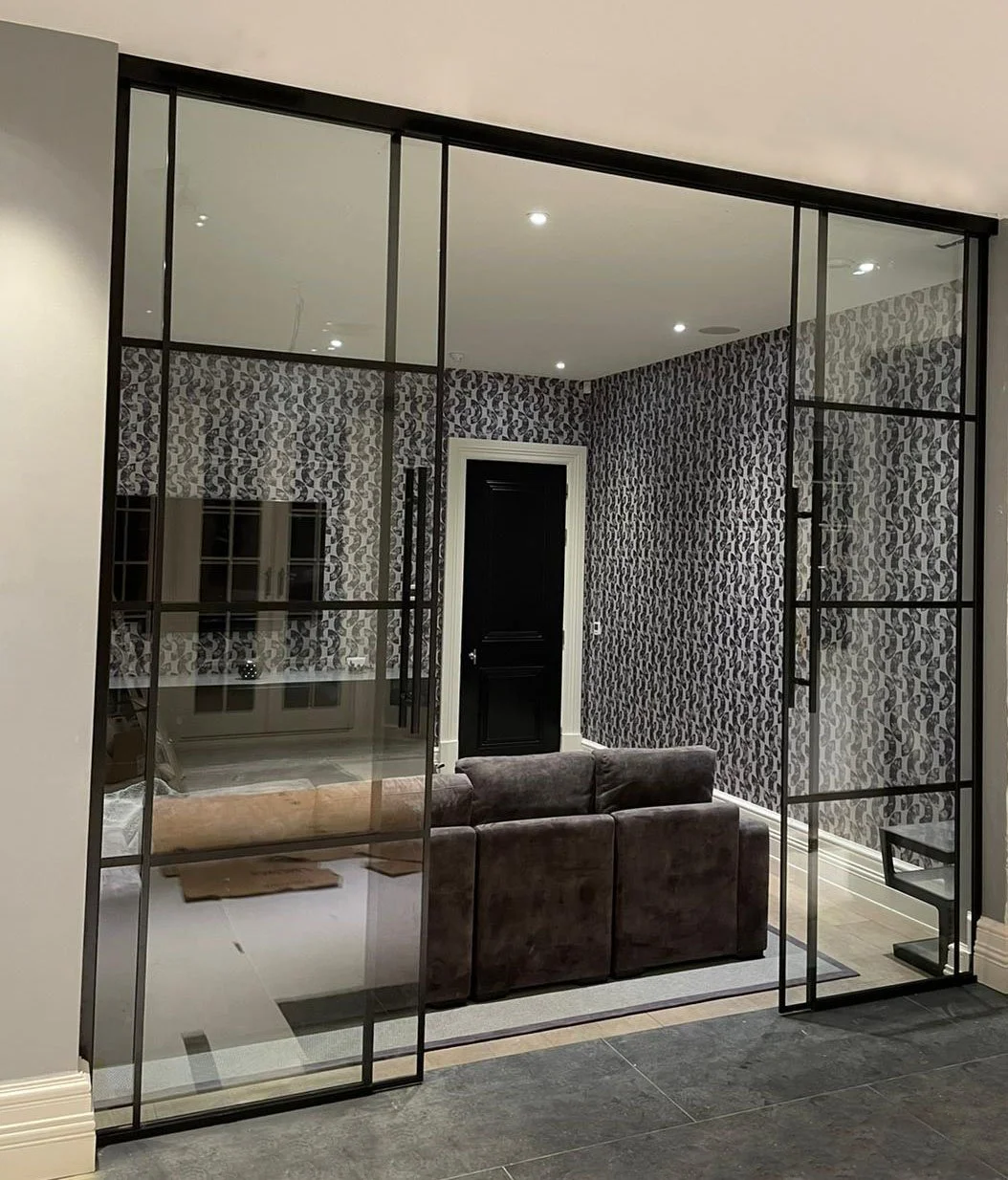

Living room viewed through a large glass sliding door with black metal frames, featuring patterned wallpaper, a black door, a brown sofa, and a pale tiled floor.

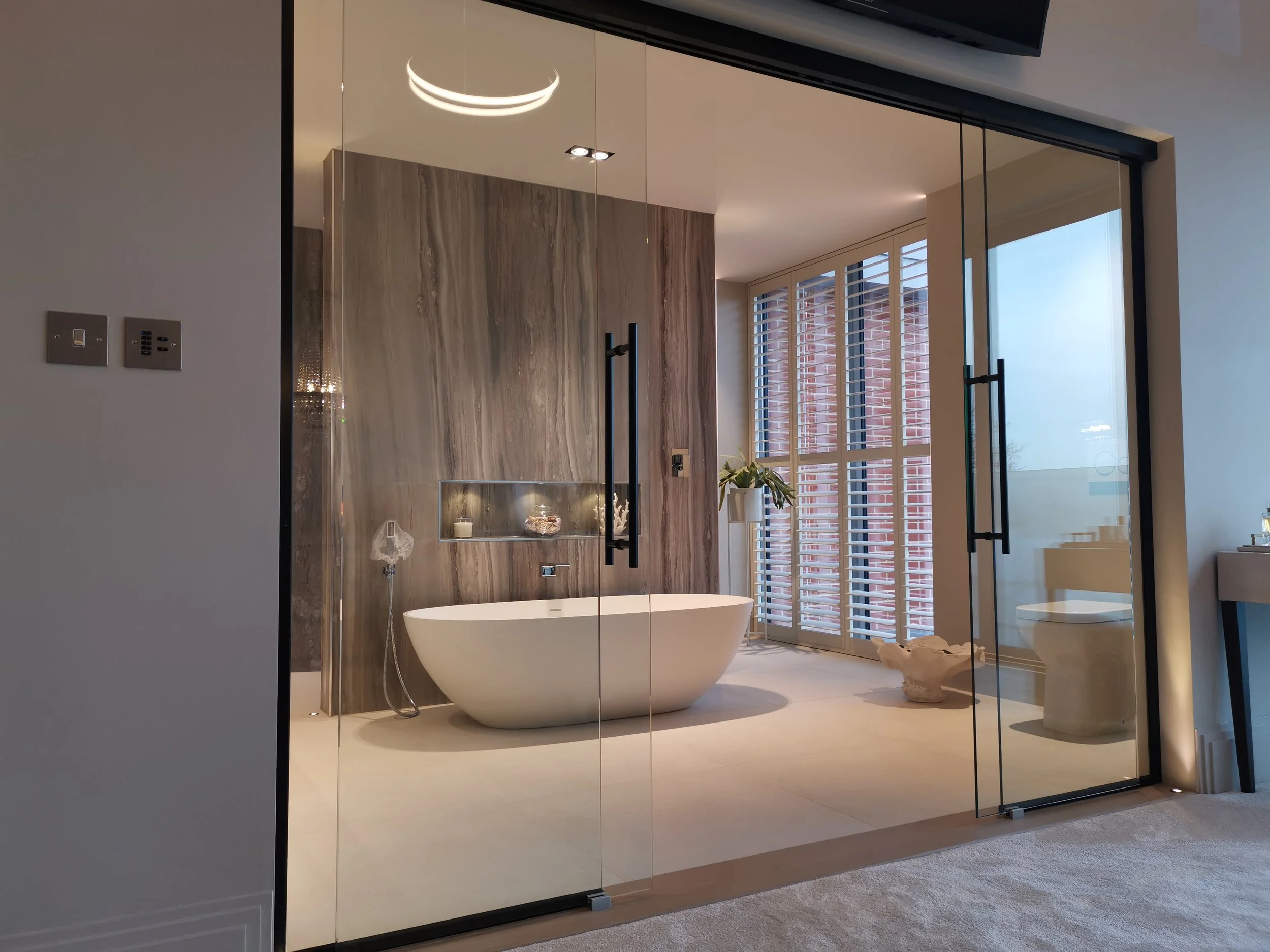

A bathroom with a freestanding bathtub, a wood-paneled accent wall, a window with white blinds, a plant on a small table, and a glass shower door.
A close-up of a handshake between a woman in a striped shirt and a man in a beige shirt against a plain beige wall.

Let’s Work Together

If you're interested in working with us, complete the form with a few details about your project. We'll review your message and get back to you within 24 hours.
