High Performance Double Glazed Ei Fire Rated up to 60 Minutes

TG100

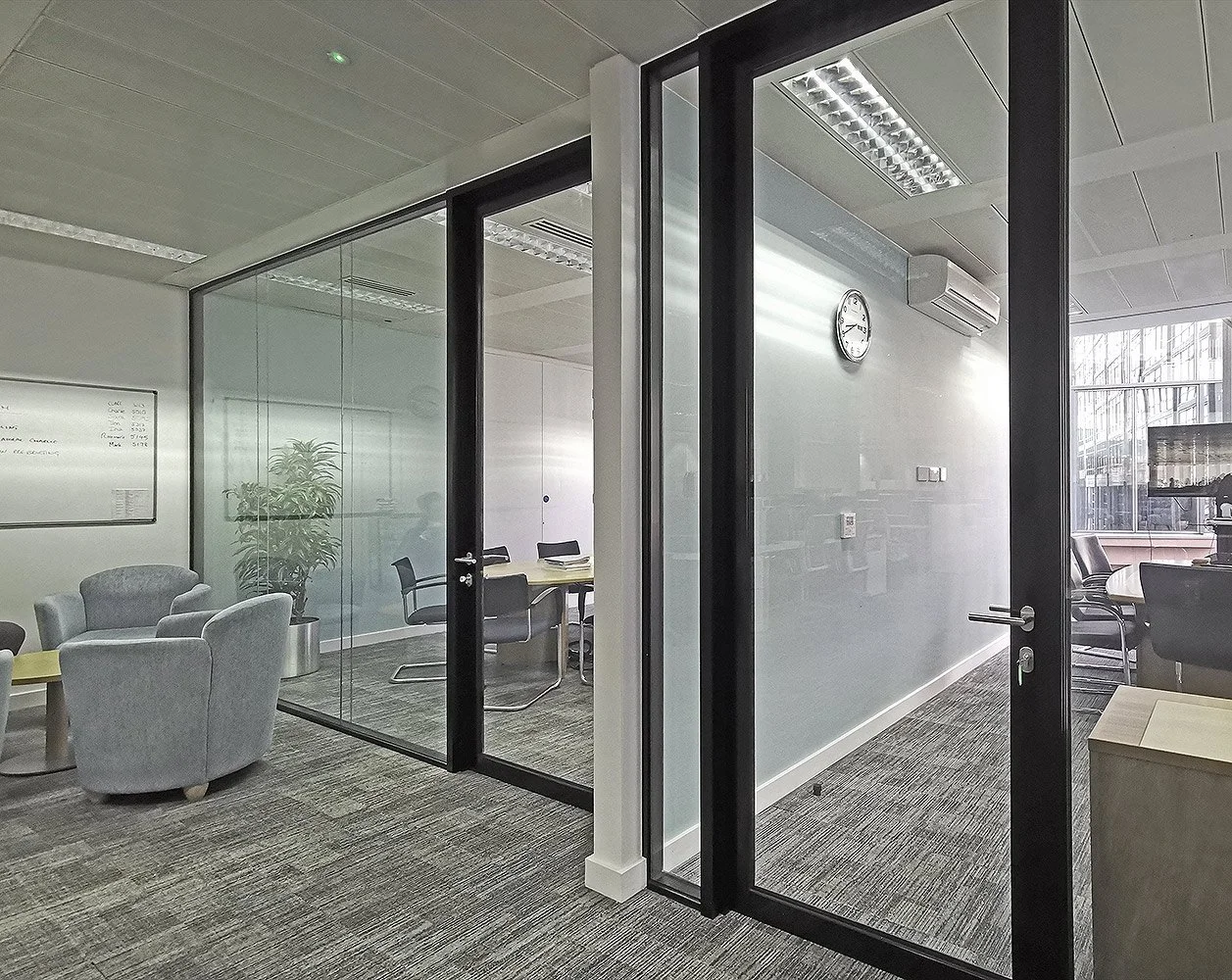

Modern office interior with a glass door, a clock on the wall, and a mix of seating including armchairs and conference chairs.

The TG100 is a high-performance fire-rated glass partitioning system, designed to provide EI30 and EI60 fire resistance while maintaining a sleek, frameless aesthetic. Utilizing Schott Pyranova 15mm and 23mm fire-rated glass, the system features butt-jointed glazing with advanced fire-rated dry joint technology, eliminating the need for silicone or unsightly framing elements.

Engineered for architectural flexibility, the TG100 system achieves up to 62dB acoustic reduction and supports installations up to 3000mm in height, making it ideal for modern office, commercial, and public-sector applications. Full-Height Door Integration – Compatible with single and double full-height fire-rated door sets, ensuring design continuity.

Fire Options Available

Green flame icon with fire inside a shield outline

Acoustic Options Available

Speaker icon with sound waves on a black background
SG25 Specification

Download
SG25 Specification

Brochure cover for Glass Interiors featuring geometric design with green, blue, and white triangular patterns, company logo, and the title 'Corporate Brochure 2019/2020'.

Download
Corporate Brochure

DRI logo with black background

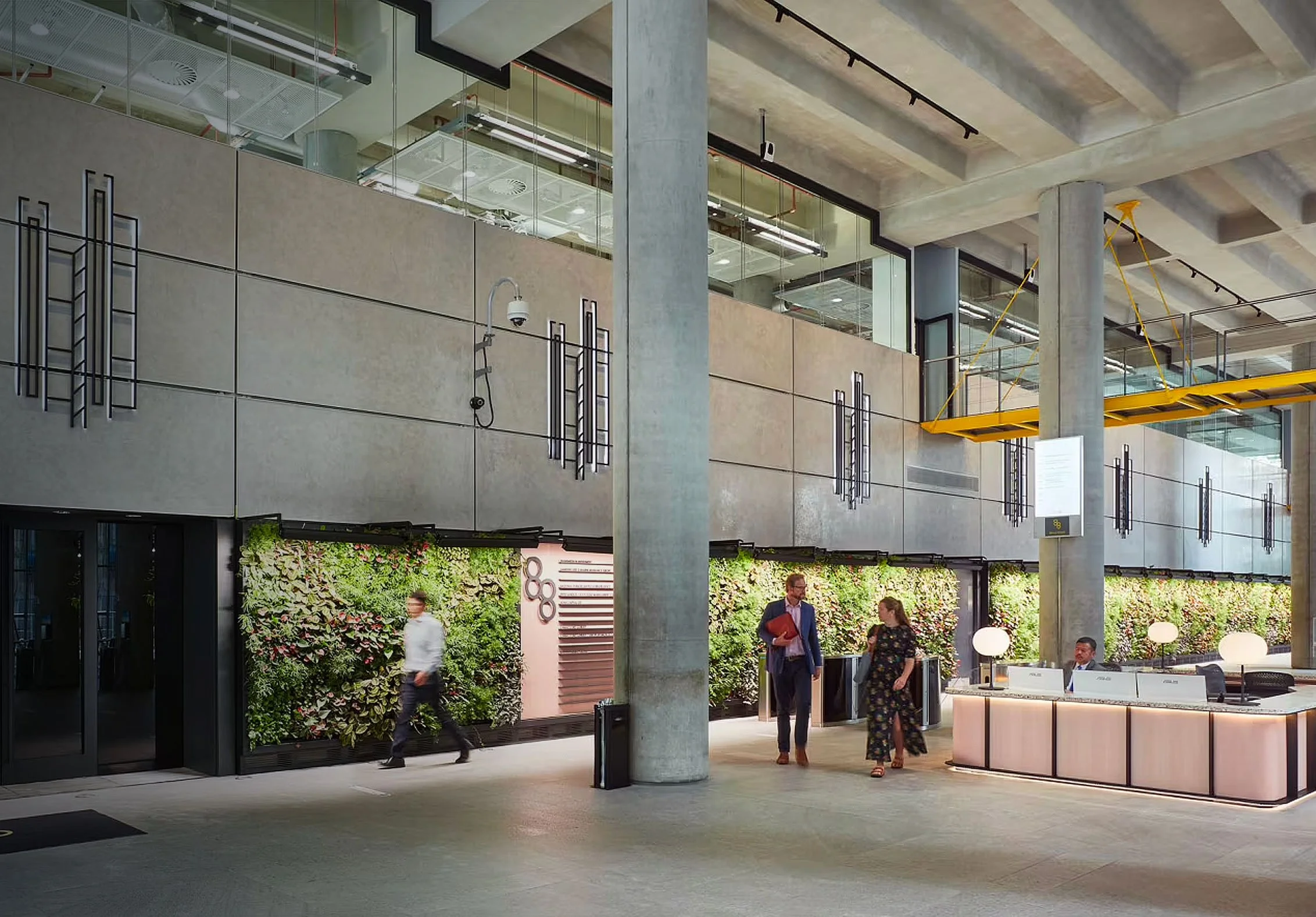

Modern interior of a building with concrete columns, glass windows, and a vertical green wall decorated with plants. People are walking and talking in the lobby area that features a reception desk and lounge seating.

TG100

Specification Overview

Max Dimensions
Width - Continuous
Height up to 3000mm

Fire Rating
Ei30 (Integrity & Insulation)
Ei60 (Integrity & Insulation)

Acoustic reduction
Up to 62dB

Loadings
Up to 1.5kN

Deflection Head
±25mm

Door Types
D54 Fire Ei Rated
TD40 Timber Solid Core

Door Frame Options
Rebated Aluminium
Frameless (Glass-to-glass)

Compatible Glass Types
12mm Toughened
12.8mm Acoustic Glass
16.8mm Acoustic Glass
13.5 Toughened / Laminated
21.5 Toughened / Laminated
23mm Pyranova Ei60 Fire Rated
15mm Pyranova Ei30 Fire Rated

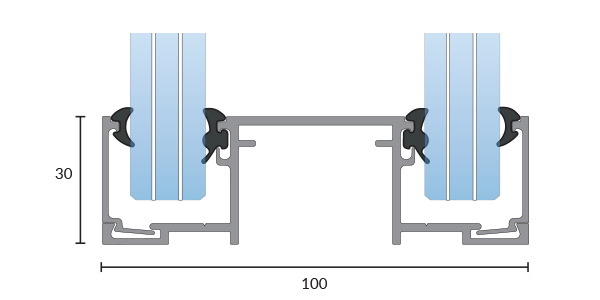

Cross-section of a double-glazed window frame showing glass panes, seals, and structural components with measurements.
Technical drawing of a double-glazed window cross-section showing the frame, glass panes, and measurements in millimeters.

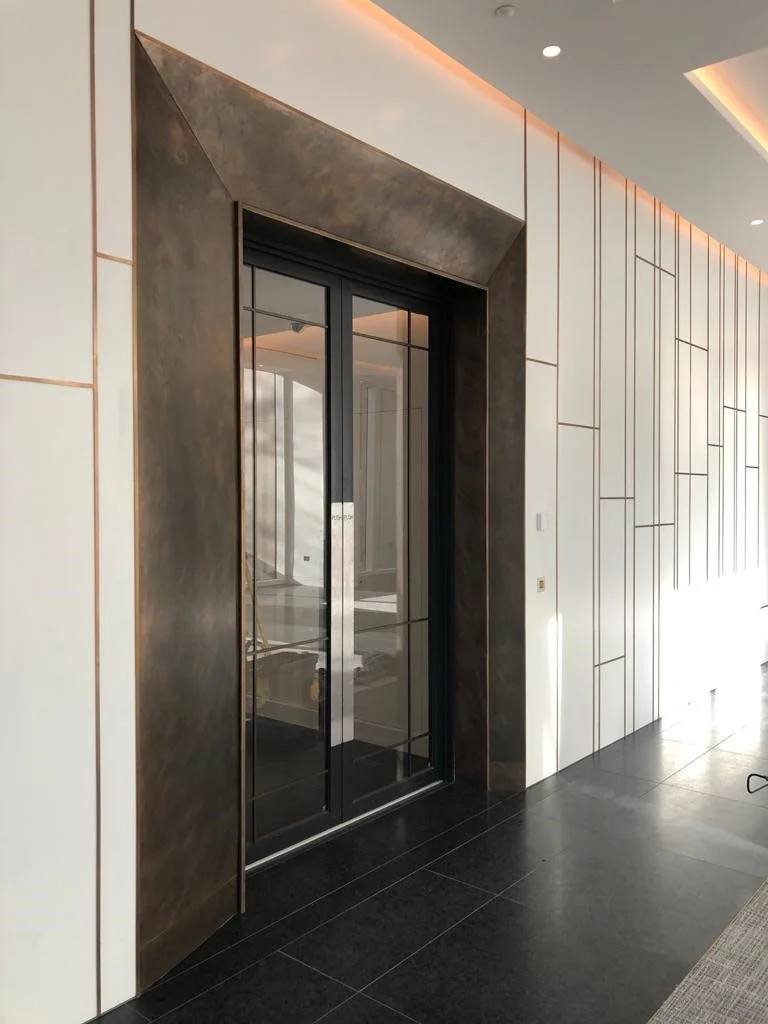

Modern elevator door with black glass and metallic frame in a sleek, contemporary interior space with decorative wall panels and black flooring.

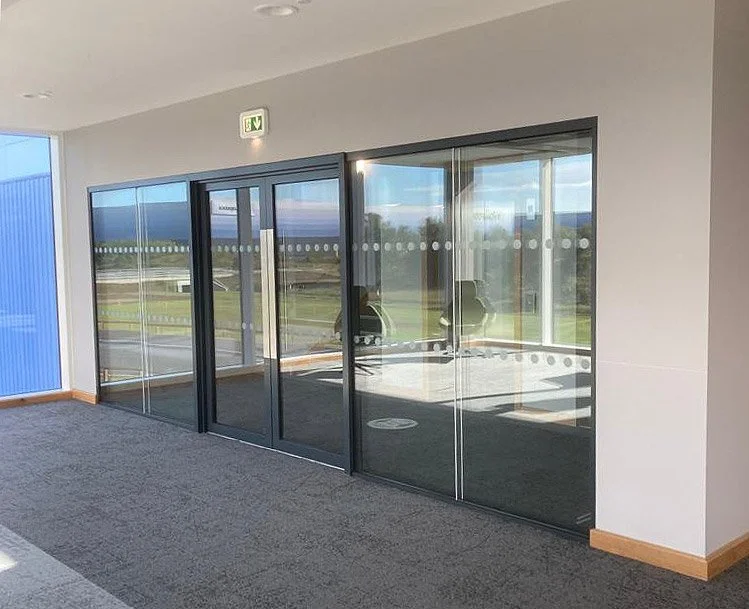

Interior view of a modern office with sliding glass doors and a carpeted floor, with an external view of a parking lot and green landscape

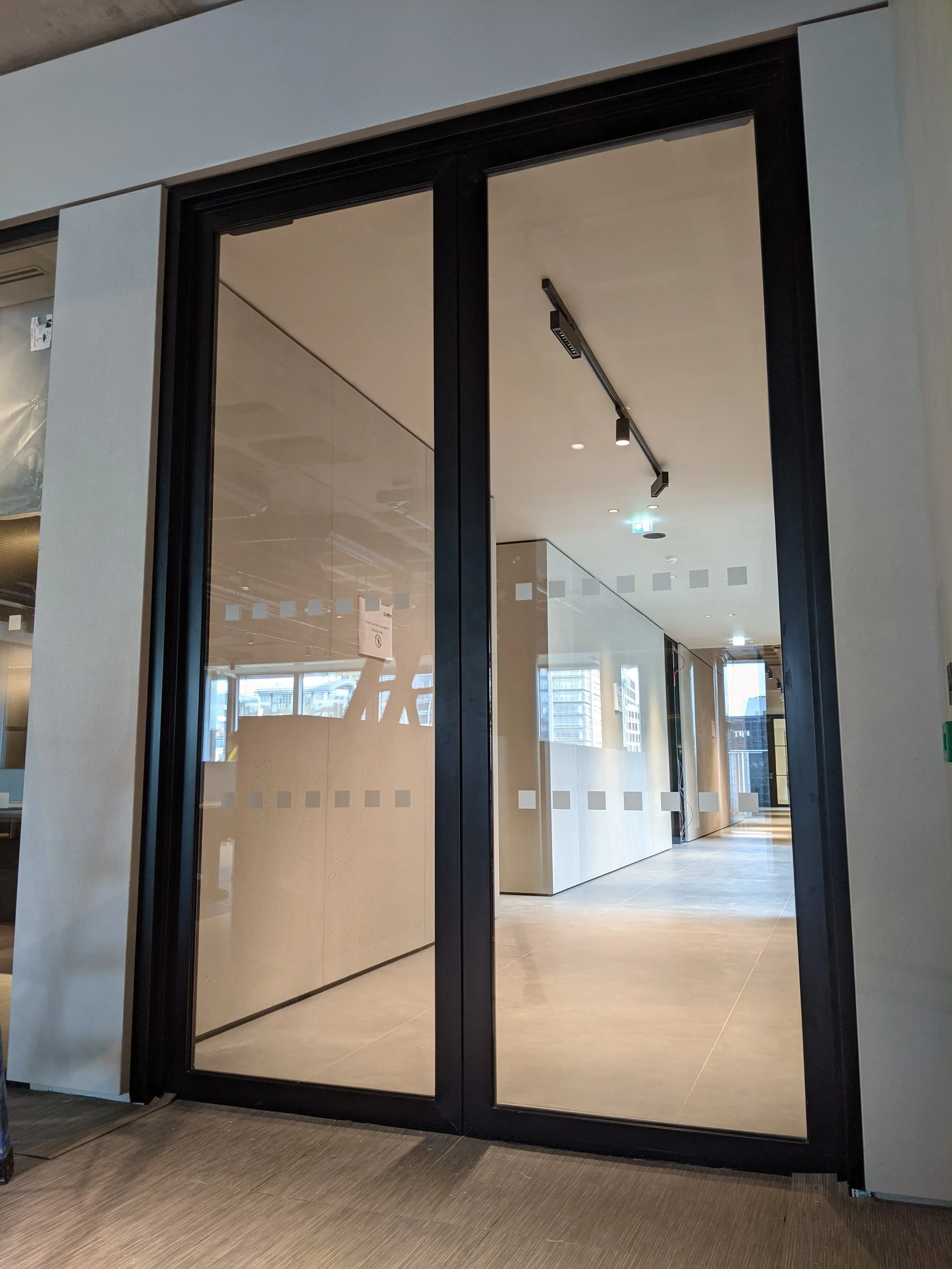

A large glass sliding door with a black frame leading into a modern interior space with beige walls, a light-colored tile floor, and city views outside.

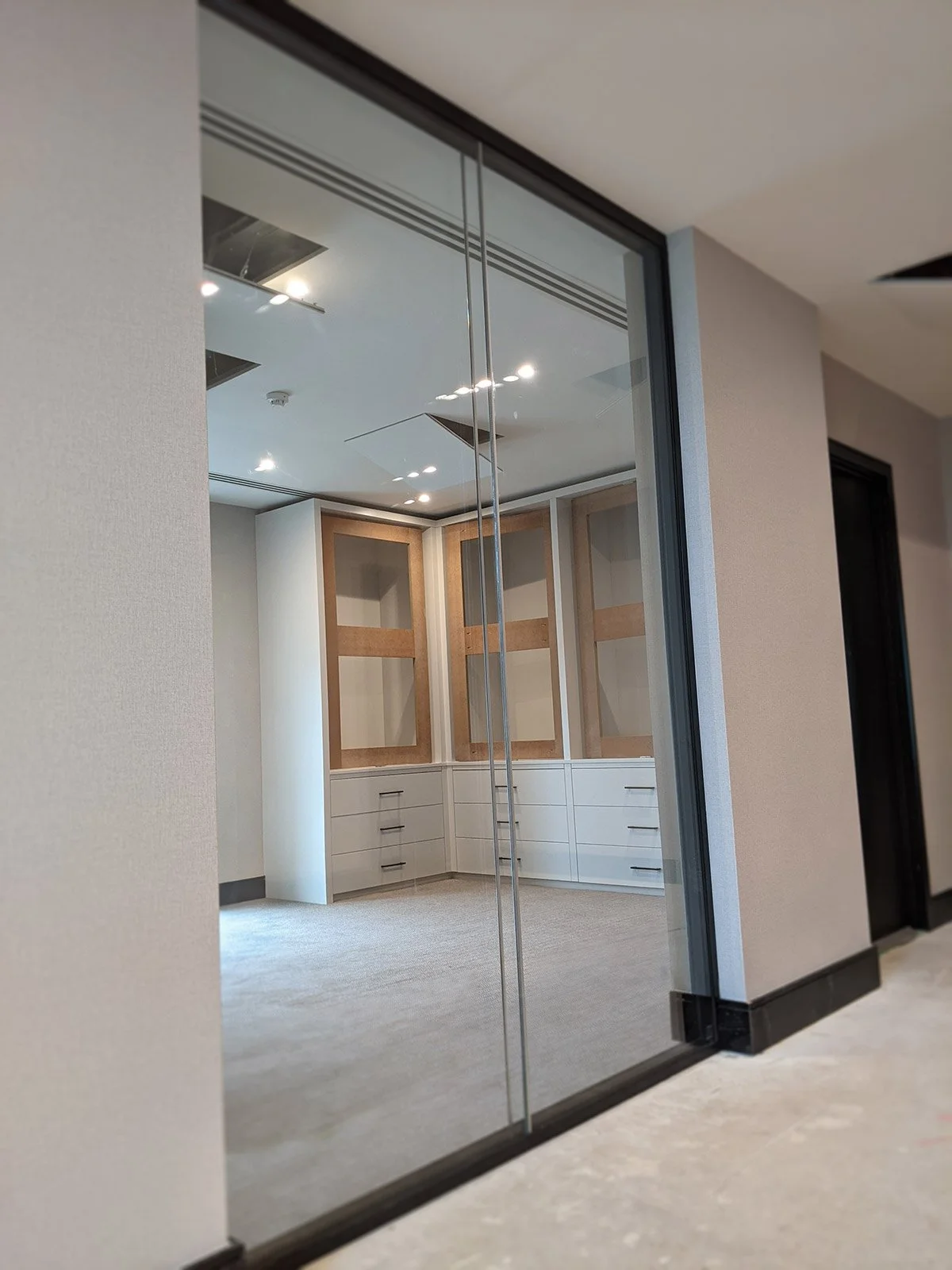

Interior view of a modern room with built-in cabinets and glass sliding doors, seen through a glass wall.
