SG25

Fully demountable and re-locatable single glazed system can be installed to heights of up to 3200mm using a range of glass types from 10mm to 13.5mm Toughened Laminated. SG25 has been designed for quick and easy installation offering clients a highly flexible product. The slim frame offers a nearly flush glazed solution creating exceptional aesthetics within the workplace. Frame finishes are supplied in a range of standard RAL painted finishes or can be anodised to create Brushed Stainless Steel, Polished Steel or Bright Copper and Gold finishes. A range of doors can be incorporated from fully frameless single glazed products to framed doors for better acoustics and timber solid core doors.

Single Glazed Partitioning System

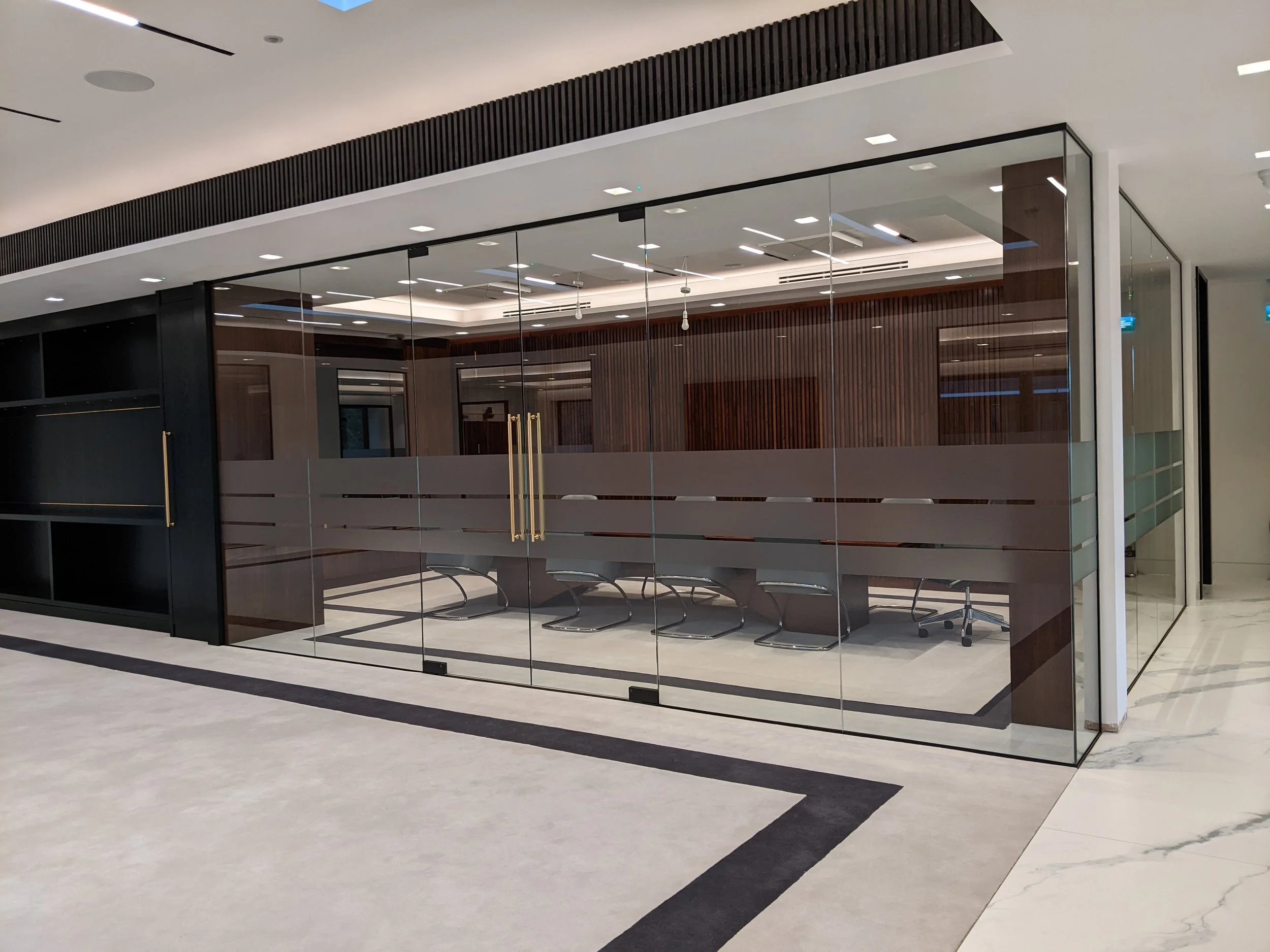

A modern building entrance with glass doors and walls, black accents, and a sleek interior design with wood and metal details.

Download
SG25 Specification

Download
Corporate Brochure

Acoustic Options Available

Speaker icon with sound waves indicating audio or volume.

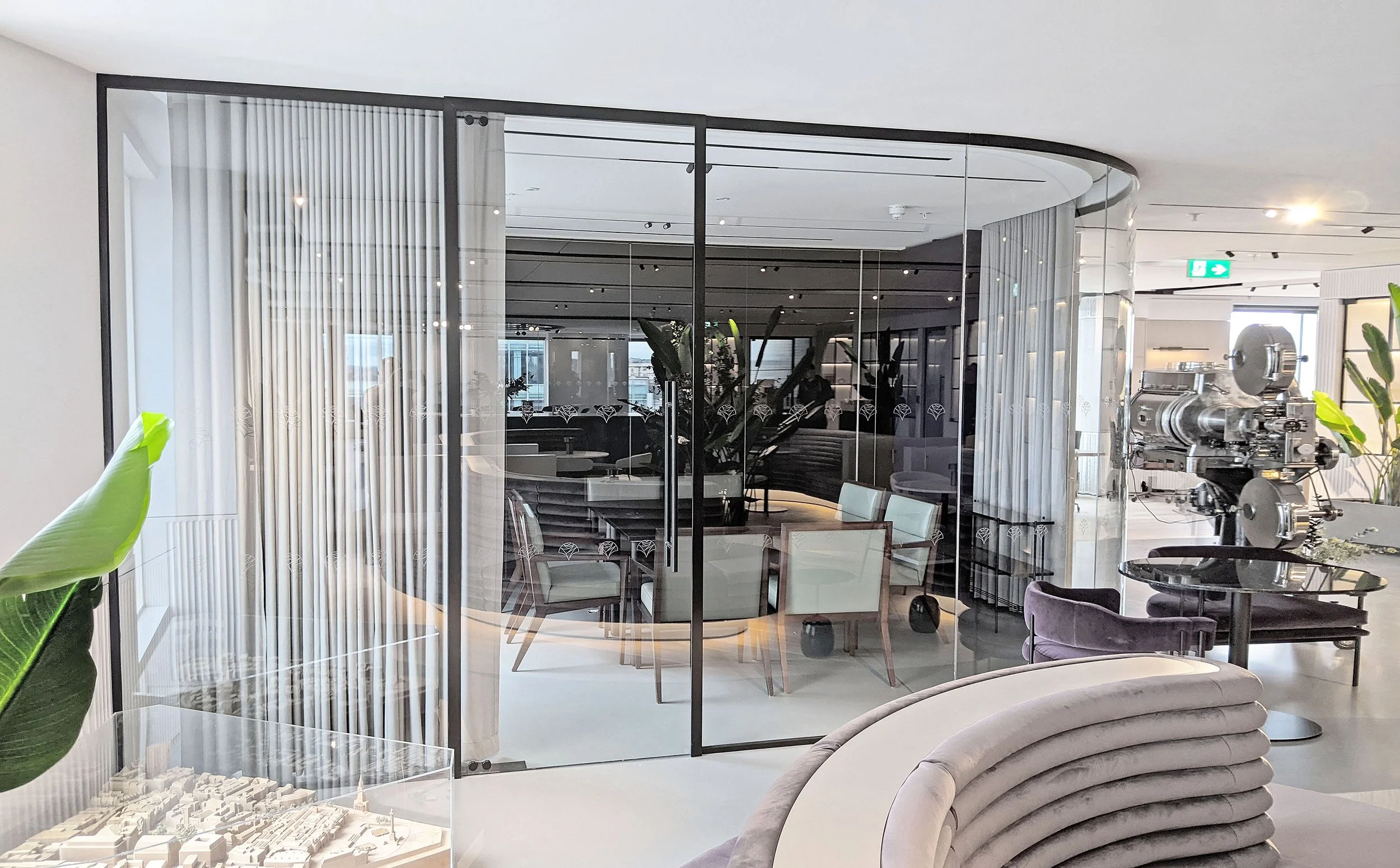

Interior view of a modern building with glass walls, white curtains, and seating areas, including a curved velvet sofa. There is a large piece of machinery on the right side and a model of a city or development plan at the bottom left.

SG25

Specification Overview

Max Dimensions
Width - Continuous
Height up to 3200mm

Fire Rating
Non-fire rated

Acoustic reduction
12.8mm Acoustic Glass - 38dB
10mm Toughened Glass - 33dB

Loadings
Up to 0.74kN

Deflection Head
±25mm

Door Types
D30 Frameless
D40 Acoustic
SD30 Sliding
TD40 Timber Solid Core

Door Frame Options
Rebated Hardwood Timber
Rebated Aluminium
Frameless (Glass-to-glass)

Compatible Glass Types
10mm Toughened
10.8mm Acoustic Glass
12mm Toughened
12.8mm Acoustic Glass
13.5 Toughened / Laminated

Technical drawing of a cross-section of a window or door frame with blue glass panel and detailed measurements.

Cross-sectional diagram of a blue and gray aluminum window frame with measurements of 280mm width and 250mm height.

Cross-sectional diagram of an aluminum extrusion with measurements

Cross-sectional diagram of a double-glazed window showing two glass panes separated by a spacer and sealed with rubber gaskets.

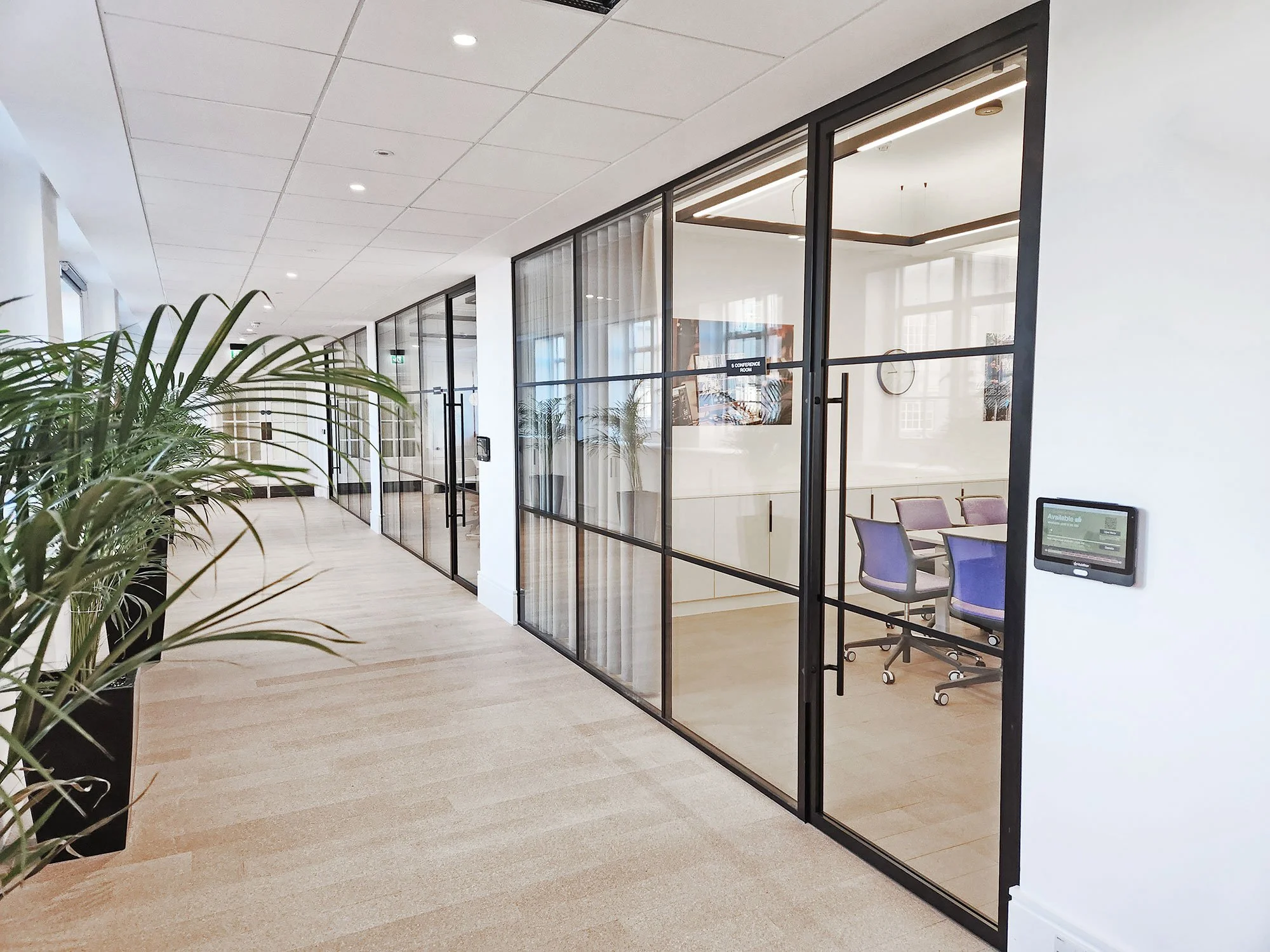

Modern office conference room with glass walls, purple chairs, a clock on the wall, and indoor plants in the hallway.

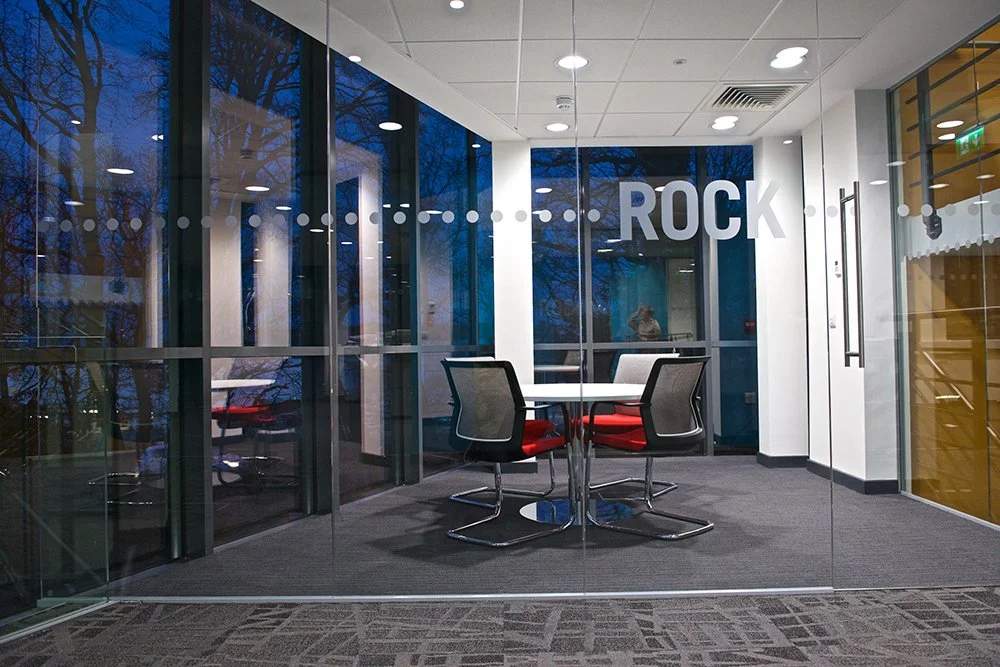

Empty modern glass meeting room with four chairs and a round table inside an office, with the word 'ROCK' on the glass window.

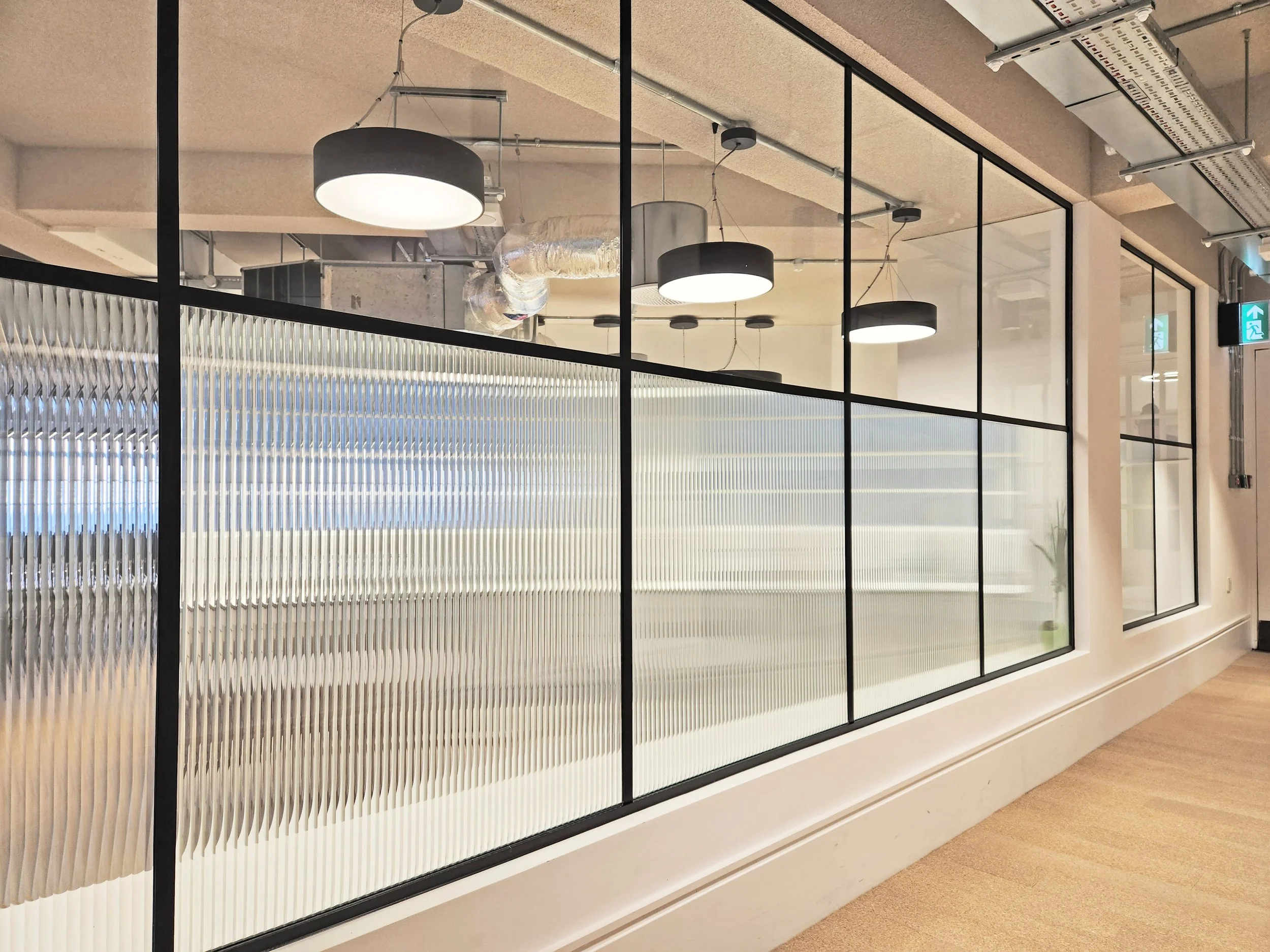

Interior view of an office or commercial space with large glass windows, modern pendant lights, exposed ductwork, and an emergency exit sign.

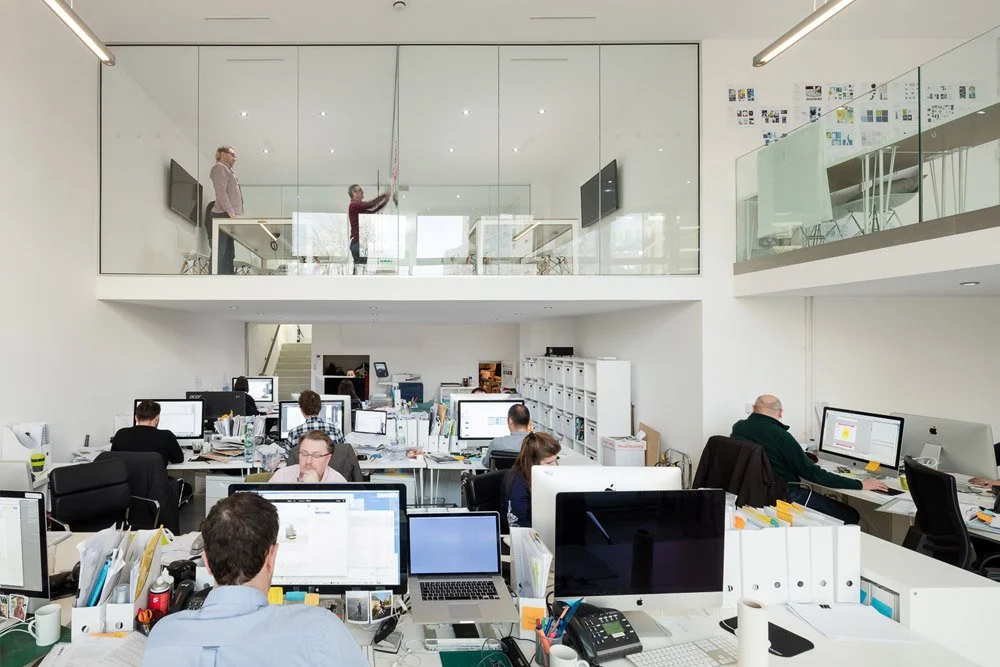

Office with multiple employees working at desks, large white walls, and a glass-walled mezzanine with two people, one using a tablet and another watching.

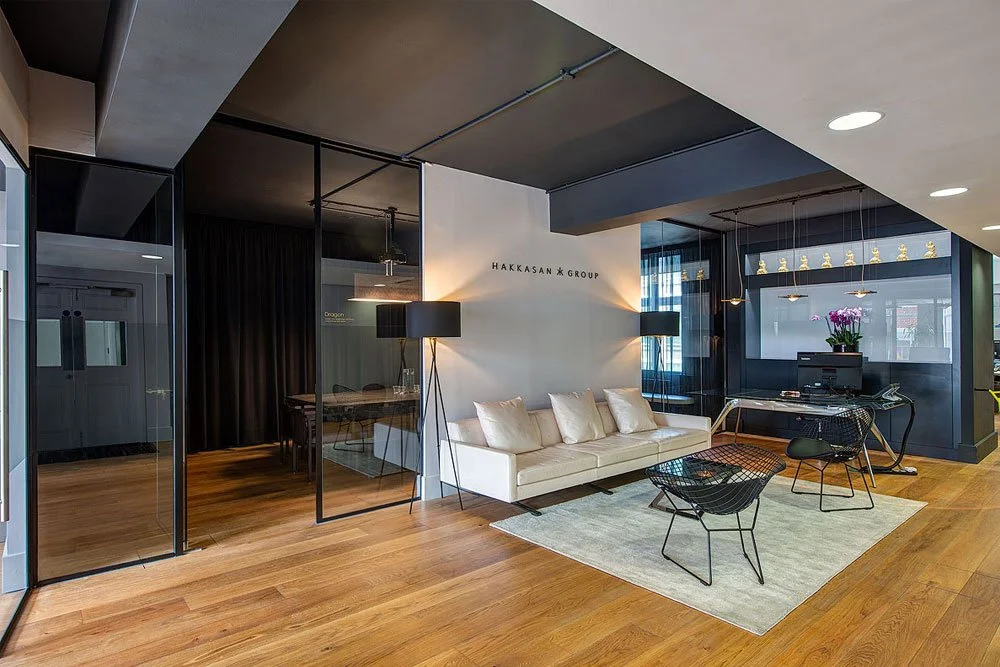

Modern office reception area with a white sofa, black wire chairs, and a gray area rug. There's a black desk with a computer and flowers, and a sign on the wall reads 'Hakkasan Group.'
